Home » Products » DSNU-63-40-PPV-A

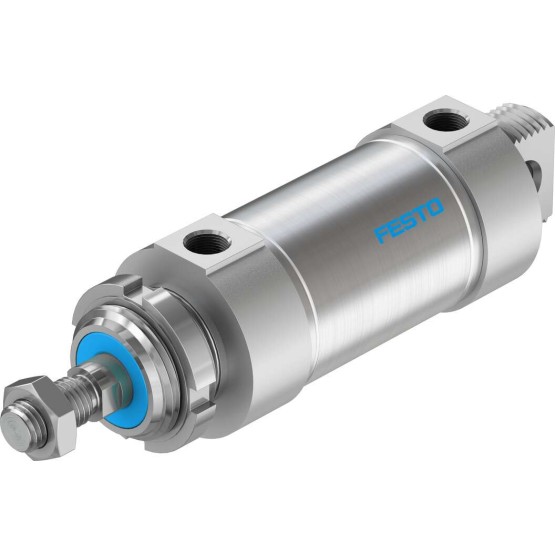

DSNU-63-40-PPV-A

$178.24

Round Cylinder is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:DSNU-63-40-PPV-A

FESTO Order Number:196051

SKU: DSNU-63-40-PPV-A Category: Tag:

Description

Stroke [mm] 40
Piston diameter 63 mm
Piston rod thread M16x1,5
Dampening PPV: Pneumatic dampening both sides adjustable
installation position arbitrary
Construction set up Pistonpiston rodcylinder tube
Position detection For proximity switch
Operating pressure [bar] 1 to 10
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 – moderate corrosion stress
ambient temperature [??C] -20 to 80
Theoretical force at 6 bar, Return flow [N] 1.681,9
Fastening type With Accessories
Pneumatic connection G3/8
Material information RoHs compliant
Cover material Aluminium wrought alloy
Seals material NBRTPE-U(PU)
Piston rod material High-alloyed steel
Cylinder tube material High-alloyed stainless steels
Theoretical force at 6 bar, flow [N] 1.870,3
Dampening length [mm] 21
Moving mass [g] 559
Product weight [g] 1.621
