Home » Products » EAGF-V2-KF-40-400

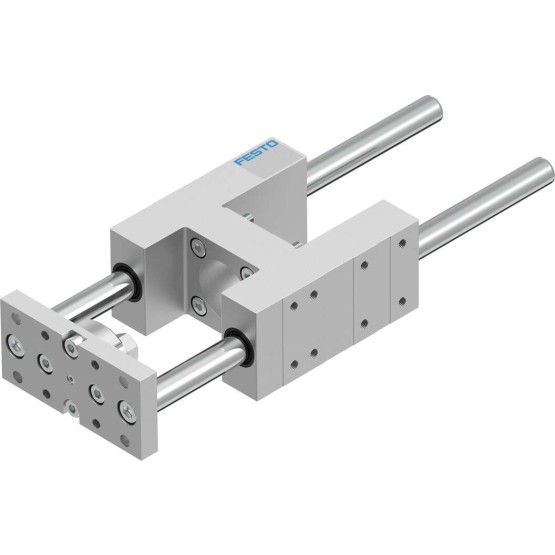

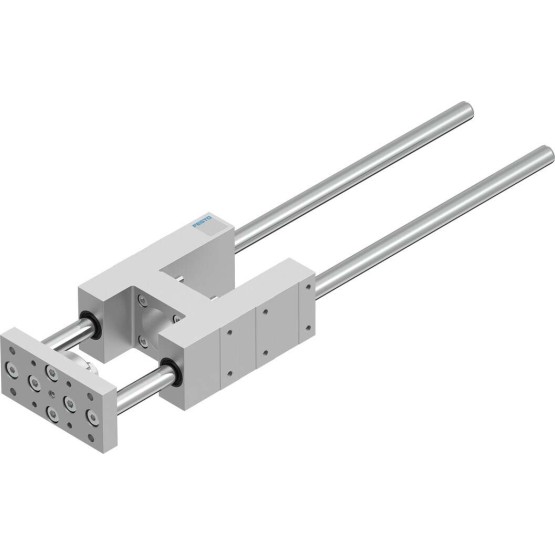

EAGF-V2-KF-40-400

EAGF-V2-KF-40-400

$888.83

Guide Unit is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:Eagf-V2-Kf-40-400

FESTO Order Number:2783080

SKU: EAGF-V2-KF-40-400 Category: Tag:

Description

size 40
Stroke [mm] 400
Reversing play [??m] 0
installation position arbitrary
Guide ball guide
Construction set up Guide
Corrosion resistant class KBK 0 – No corrosion stressing
ambient temperature [??C] -20 to 80
Max. force Fy [N] 1.000
Max. force Fy static [N] 1.260
Max. force Fz [N] 1.000
Max. force Fz static [N] 1.260
Max. torque Mx [Nm] 44
Max. torque Mx static [Nm] 55
Max. torque My [Nm] 52
Max. torque My static [Nm] 65
Max. torque Mz [Nm] 52
Max. torque Mz static [Nm] 65
Pushing force [N] 15,0
Moving mass [g] 2.563
Product weight [g] 3.797
Centre of mass of the moved mass at 0 mm stroke [mm] 38
Supplement centre of mass of the moved mass per 10 mm stroke [mm] 4,2
Fastening type with female thread
Material information Copper and PTFE-freeRoHs compliant
Guide element material Quenched and tempered steel
Housing material Aluminium wrought alloyanodized
Joch plate material Steel
