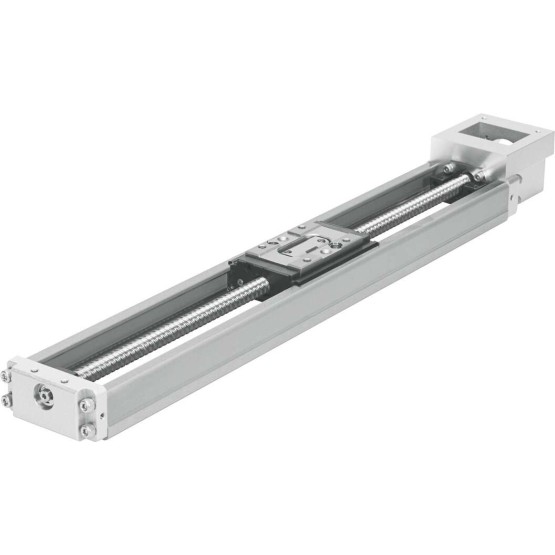

EGSK-26-100-6P

EGSK-26-100-6P

$1,133.68

Electric Slide is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:Egsk-26-100-6P

FESTO Order Number:562769

SKU: EGSK-26-100-6P Category: Tag:

Description

Working stroke [mm] 100
size 26
Reversing play [??m] <= 20 ??m Spindle diameter [mm] 8 Spindle pitch [mm/U] 6 installation position arbitrary Guide ball guide Construction set up Electro-mechanical linear axisWith Ball screw drive Referencing Reference switch Spindle type Ball screw drive Max. acceleration [m/s2] 10 Max. speed [m/s] 0,59 Repeatability ??0.01 mm Corrosion resistant class KBK 0 - No corrosion stressing Protection category IP10 ambient temperature [??C] 0 to 40 Dynamic load factor fixed bearing [N] 1.380 Dynamic load factor linear guide [N] 5.746 Dynamic load factor ball screw drive [N] 1.950 Flat torque 2nd grade ly [mm4] 17.000 Flat torque 2nd grade lz [mm4] 150000 Max. actuator torque [Nm] 0,110 Max. force Fy [N] 1.541 Max. force Fz [N] 1.541 Max. torque Mx [Nm] 26,2 Max. torque My [Nm] 8,9 Max. torque Mz [Nm] 8,9 Max. feed force Fx [N] 116 Empty run actuator torque [Nm] 0,015 Static load factor ball screw drive [N] 3.510 Static load factor linear guide [N] 12.150 Mass inertia JH per metre stroke [kg/cm2] 0,0316 Mass inertia JO [kg/cm2] 0,00481 Feed constant [mm/U] 6 Static load factor fixed bearing [N] 1.760 Guideline running performance [km] 3.000 Moving mass [g] 153 Carriage weight [g] 153 Additional carriage weight [g] 153 Weight supplement per 10 mm stroke [g] 42 Base weight at 0 mm stroke [g] 780 Product weight [g] 1.200 Fastening type With Female thread and dowel pin Closing cover material Aluminium die castingCoated Profile material High-alloyed stainless steels Material information LABS containing materials includedRoHs compliant Actuator cover material Aluminium die castingCoated Carriage material Steel Spindle nut material Steel Spindle material Steel
