EGSK-33-300-6P

EGSK-33-300-6P

$1,912.89

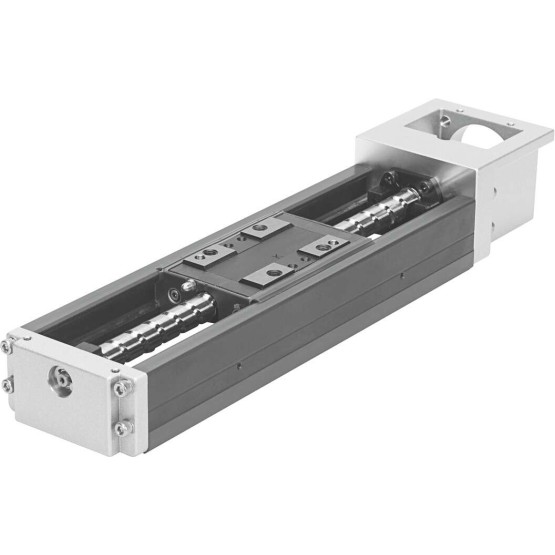

Electric Slide is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:Egsk-33-300-6P

FESTO Order Number:562774

SKU: EGSK-33-300-6P Category: Tag:

Description

Working stroke [mm] 300
size 33
Reversing play [??m] <= 20 ??m Spindle diameter [mm] 10 Spindle pitch [mm/U] 6 installation position arbitrary Guide ball guide Construction set up Electro-mechanical linear axisWith Ball screw drive Referencing Reference switch Spindle type Ball screw drive Max. acceleration [m/s2] 20 Max. speed [m/s] 0,47 Repeatability ?I0.01 mm Corrosion resistant class KBK 0 - No corrosion stressing Protection category IP10 ambient temperature [??C] 0 to 40 Dynamic load factor fixed bearing [N] 1.790 Dynamic load factor linear guide [N] 9.207 Dynamic load factor ball screw drive [N] 2.840 Flat torque 2nd grade ly [mm4] 62.000 Flat torque 2nd grade lz [mm4] 380000 Max. actuator torque [Nm] 0,140 Max. force Fy [N] 2.469 Max. force Fz [N] 2.469 Max. torque Mx [Nm] 50,1 Max. torque My [Nm] 16,4 Max. torque Mz [Nm] 16,4 Max. feed force Fx [N] 150 Empty run actuator torque [Nm] 0,070 Static load factor ball screw drive [N] 4.900 Static load factor linear guide [N] 20.200 Mass inertia JH per metre stroke [kg/cm2] 0,0771 Mass inertia JO [kg/cm2] 0,01150 Feed constant [mm/U] 6 Static load factor fixed bearing [N] 2.590 Guideline running performance [km] 3.000 Moving mass [g] 310 Carriage weight [g] 310 Additional carriage weight [g] 310 Weight supplement per 10 mm stroke [g] 63 Base weight at 0 mm stroke [g] 1.380 Product weight [g] 3.270 Fastening type With Female thread and dowel pin Closing cover material Aluminium die castingCoated Profile material CoatedHigh-alloyed steel Material information LABS containing materials includedRoHs compliant Actuator cover material Aluminium die castingCoated Carriage material Steel Spindle nut material Steel Spindle material Steel
