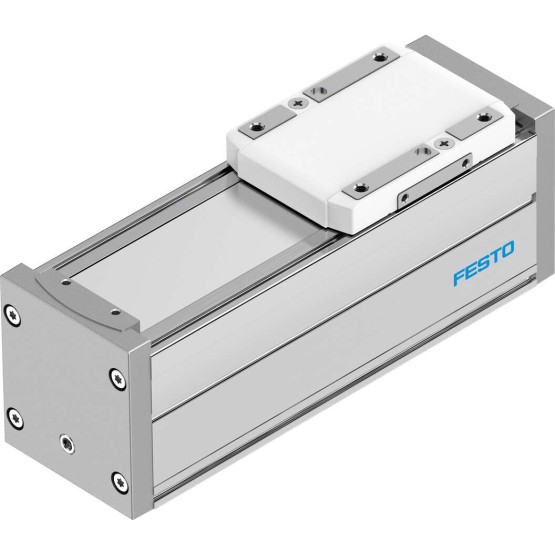

ELFC-KF-60-1800

$749.82

Guide Axis is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:Elfc-Kf-60-1800

FESTO Order Number:8062822

SKU: ELFC-KF-60-1800 Category: Tag:

Description

Working stroke [mm] 1.800
size 60
Stroke reserve [mm] 0
installation position arbitrary
Guide ball guide
Construction set up Guide
Max. acceleration [m/s2] 500
Max. speed [m/s] 1,5
Power-on time 100 %
Corrosion resistant class KBK 0 – No corrosion stressing
Protection category IP40
ambient temperature [??C] 0 to 50
Flat torque 2nd grade ly [mm4] 441000
Flat torque 2nd grade lz [mm4] 542000
Max. force Fy [N] 600
Max. force Fz [N] 1.800
Max. torque Mx [Nm] 29,1
Max. torque My [Nm] 31,8
Max. torque Mz [Nm] 31,8
Torsional moment of inertia to [mm4] 29.800
Pushing force [N] 6,75
Fy for theoretical lifetime of 100 km (pure guide observation) [N] 2.208
Fz for theoretical lifetime of 100 km (purely management observation) [N] 6.624
Mx for theoretical lifetime of 100 km (Purely management observation) [Nm] 107
My for theoretical lifetime of 100 km (Purely management observation) [Nm] 117
Mz for theoretical lifetime of 100 km (Purely management observation) [Nm] 117
Moving mass [g] 407
Weight supplement per 10 mm stroke [g] 43
Closing cover material Die cast aluminium, painted
Profile material Aluminium wrought alloy, anodised
Material information LABS containing materials includedRoHs compliant
Masking tape material High-alloyed stainless steels
Cover material Die cast aluminium, painted
Carriage guide material Steel
Guide carriage material Steel
Carriage material Aluminium die casting
