Home » Products » ELFC-KF-80-200

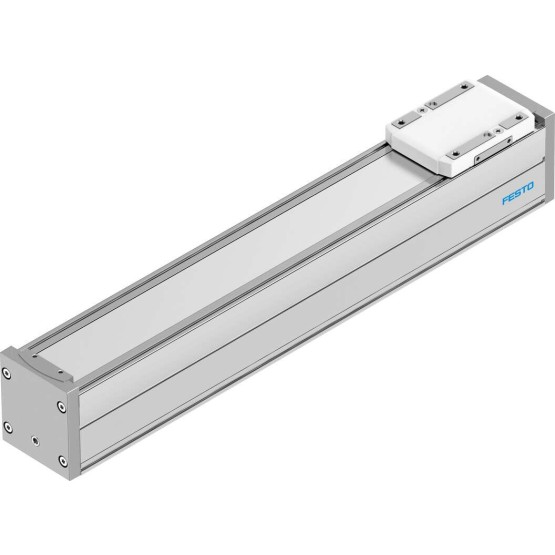

ELFC-KF-80-200

$490.46

Guide Axis is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:Elfc-Kf-80-200

FESTO Order Number:8062825

SKU: ELFC-KF-80-200 Category: Tag:

Description

Working stroke [mm] 200
size 80
Stroke reserve [mm] 0
installation position arbitrary
Guide ball guide
Construction set up Guide
Max. acceleration [m/s2] 500
Max. speed [m/s] 1,5
Power-on time 100 %
Corrosion resistant class KBK 0 – No corrosion stressing
Protection category IP40
ambient temperature [??C] 0 to 50
Flat torque 2nd grade ly [mm4] 1.37e+006
Flat torque 2nd grade lz [mm4] 1.66e+006
Max. force Fy [N] 900
Max. force Fz [N] 2.700
Max. torque Mx [Nm] 59,8
Max. torque My [Nm] 56,2
Max. torque Mz [Nm] 56,2
Torsional moment of inertia to [mm4] 90.500
Pushing force [N] 15,00
Fy for theoretical lifetime of 100 km (pure guide observation) [N] 3.312
Fz for theoretical lifetime of 100 km (purely management observation) [N] 9.936
Mx for theoretical lifetime of 100 km (Purely management observation) [Nm] 220
My for theoretical lifetime of 100 km (Purely management observation) [Nm] 207
Mz for theoretical lifetime of 100 km (Purely management observation) [Nm] 207
Moving mass [g] 815
Weight supplement per 10 mm stroke [g] 73
Closing cover material Die cast aluminium, painted
Profile material Aluminium wrought alloy, anodised
Material information LABS containing materials includedRoHs compliant
Masking tape material High-alloyed stainless steels
Cover material Die cast aluminium, painted
Carriage guide material Steel
Guide carriage material Steel
Carriage material Aluminium die casting
