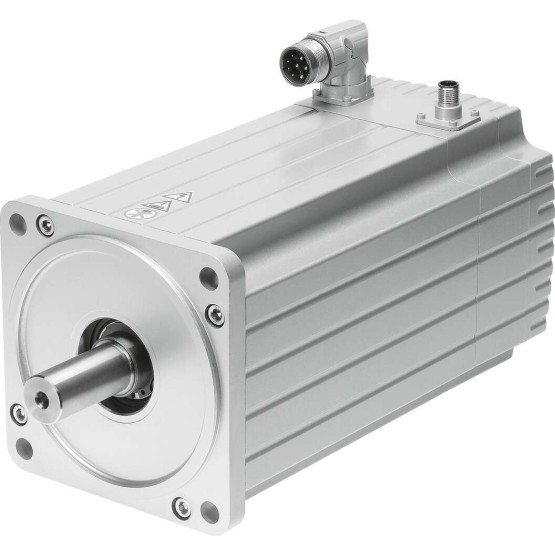

Description
ambient temperature [??C] -10 to 40
Bearing temperature [??C] -20 to 60
Relative humidity 0 – 90 %
Complies to standard IEC 60034
Insulation protection class F
Measurement class according to DIN 60034-1 S1
Temperature monitoring PTC resistance
Protection category IP65
Electrical connection technology Plug
Material information RoHs compliant
Corrosion resistant class KBK 2 – moderate corrosion stress
Permission RCM markc UL us – Recognized (OL)
CE certificate (see declaration of conformity) to EU EMC directiveto EU low voltage directive
Nominal voltage DC [V] 565
Winding switching type Star internal
Polpaarzahl 6
Standstill torque [Nm] 25,60
Nominal torque [Nm] 21,12
Peak torque [Nm] 48,8
Nominal rotational speed [1/min] 2.000
Max. speed [1/min] 2.460
Nominal performance motor [W] 4.420
Nominal current motor [A] 7,80
Peak current [A] 20,0
Motor constant [Nm/A] 2,720
Voltage constant phase-phase [mVmin] 162,39
Winding resistance phase-phase [Ohm] 1,410
Winding inductivity phase-phase [mH] 13,44
Total output moment of gyration [kg/cm2] 20,108
Product weight [g] 17.000
Permitted axial shaft loading [N] 200
Permitted radial shaft loading [N] 1.060
Rotor position transducer Encoder absolut single turn
Rotor position transducer interface EnDat 22
Rotor position transducer measurement principle Inductive
MTTF, part component 4469 years, holding brake76 years, rotor position sensor
MTTFd, part component 152 years, rotor position sensor
Holding torque brake [Nm] 18
Operating voltage DC brakes [V] 24
Power consumption brake [W] 15,6
Mass inertia Brake [kg/cm2] 1,200
Switching play holding brake 5 million empty actuation (without frictional work!)
Shaft design feather key DIN 6885A 8 x 7 x 40
Rotor position transducer resolution [Bit] 18
