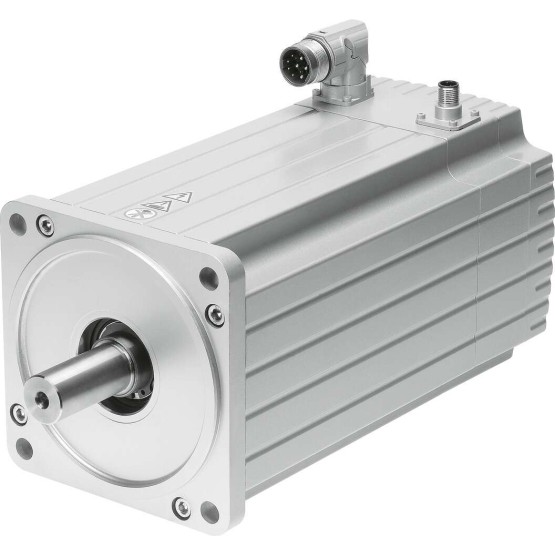

Description
ambient temperature [??C] -10 to 40
Bearing temperature [??C] -20 to 60
Relative humidity 0 – 90 %
Complies to standard IEC 60034
Insulation protection class F
Measurement class according to DIN 60034-1 S1
Temperature monitoring PTC resistance
Protection category IP65
Electrical connection technology Plug
Material information RoHs compliant
Corrosion resistant class KBK 2 – moderate corrosion stress
Permission RCM markc UL us – Recognized (OL)
CE certificate (see declaration of conformity) to EU EMC directiveto EU low voltage directive
Nominal voltage DC [V] 565
Winding switching type Star internal
Polpaarzahl 6
Standstill torque [Nm] 26,20
Nominal torque [Nm] 17,47
Peak torque [Nm] 80,0
Nominal rotational speed [1/min] 3.000
Max. speed [1/min] 5.300
Nominal performance motor [W] 5.490
Nominal current motor [A] 14,43
Peak current [A] 77,2
Motor constant [Nm/A] 1,211
Voltage constant phase-phase [mVmin] 75,40
Winding resistance phase-phase [Ohm] 0,283
Winding inductivity phase-phase [mH] 3,07
Total output moment of gyration [kg/cm2] 52,100
Product weight [g] 21.100
Permitted axial shaft loading [N] 250
Permitted radial shaft loading [N] 940
Rotor position transducer Resolver
Rotor position transducer interface SIN/COs analogue signals
Rotor position transducer measurement principle Inductive
MTTF, part component 114 years, rotor position sensor
MTTFd, part component 228 years, rotor position sensor
Nominal operating voltage DC [V] 565
