Description
size 11

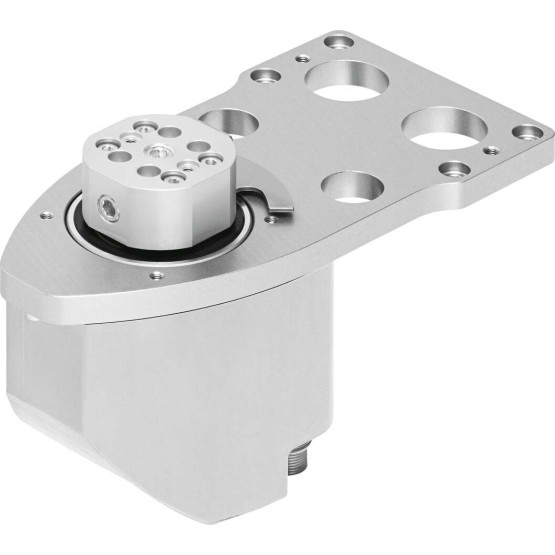

Construction set up Electro-mechanical rotary moduleWith Air duct
installation position arbitrary
Angle of rotation Endless
Gear ratio 30:1
Nominal torque [Nm] 1,80
Repeatability ?I0.01 ??
Max. axial force [N] 300
Product weight [g] 1.298
Power-on time 100 %
Nominal current motor [A] 0,74
Motor type Servo motor
Nominal width [mm] 4
Operating pressure [bar] -0.9 to 10
Normal nominal flow [l/min] 350
Max. output speed [1/min] 200
Nominal operating voltage AC [V] 230
Nominal performance motor [W] 22,1
Peak current [A] 1,50
Max. tilting torque static [Nm] 40
Peak torque [Nm] 4,5
Permitted load mass moment of inertia [kg/m2] 0,0060
Pneumatic connection G1/8
Protection category IP40
ambient temperature [??C] 0 to 40
Material information RoHs compliant
