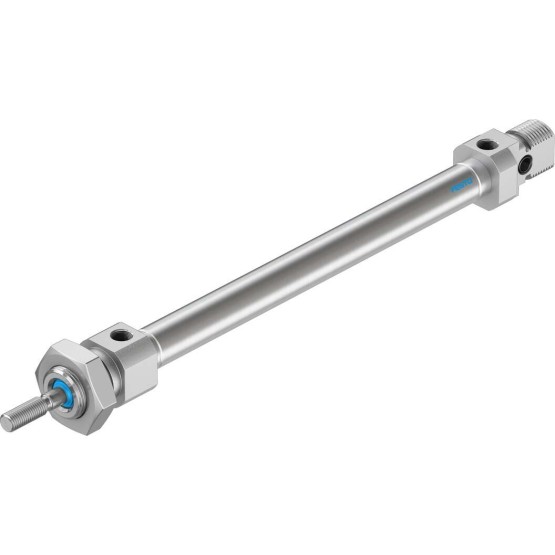

ESNU-10-25-P-A

ESNU-10-25-P-A

$54.31

Standards-Based Cylind is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:ESNU-10-25-P-A

FESTO Order Number:19258

SKU: ESNU-10-25-P-A Category: Tag:

Description

Stroke [mm] 25
Piston diameter 10 mm
Piston rod thread M4
Dampening P: Elastic silencer rings / plates double-sided
installation position arbitrary
Complies to standard CETOP RP 52 PISO 6432
Piston rod end Male thread
Construction set up Pistonpiston rodcylinder tube
Position detection For proximity switch
Variants One-sided piston rod
Operating pressure [bar] 1.5 to 10
Principle of operation Pressingsingle action
Maritime classification see Certificate
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 – moderate corrosion stress
ambient temperature [??C] -20 to 80
Impact energy at the end positions [J] 0,05
Theoretical force at 6 bar, flow [N] 41,6
Moving mass at 0 mm stroke [g] 8,5
Weight supplement per 10 mm stroke [g] 2,7
Base weight at 0 mm stroke [g] 37,3
Supplement moved mass per 10 mm stroke [g] 1
Fastening type With Accessories
Pneumatic connection M5
Material information RoHs compliant
Cover material Aluminium wrought alloyNo-colour anodised
Seals material NBRTPE-U(PU)
Piston rod material High-alloyed stainless steels
Cylinder tube material High-alloyed stainless steels
