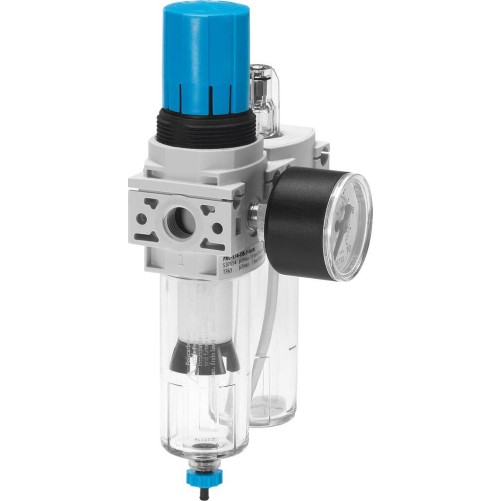

FRC-1/4-DB-7-5M-MINI-H

FRC-1/4-DB-7-5M-MINI-H

$141.78

Service Unit is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:FRC-1/4-DB-7-5M-MINI-H

FESTO Order Number:537660

SKU: FRC-1/4-DB-7-5M-MINI-H Category: Tag:

Description

size Mini
Width [mm] 88
Model series DB
Actuation fuse Rotary button with stopper
installation position vertical ?I 5??
Condensate drain Semi-automatic
Construction set up Filter controller oiler
Filter porosity [??m] 5
Controller function With Return current behaviourWith relieving
pressure display with pressure gauge
Operating pressure [bar] 1.5 to 10
Pressure regulation range [bar] 0.5 to 7
Max. pressure hysteresis [bar] 0,5
Normal nominal flow [l/min] >= 550 l/min
Operating medium Compressed air to ISO8573-1:2010 [-:-:-]Inert gases
Released oils ARAL Vitam GF 32BP Energol HLP 32ESSO Nuto H 32MOBIL DTE 24SHELL Tellus Oil DO 32Order designation: 152 811 OFSW-32ISO class VG 32 acc. to ISO 3448Viscosity range 32 mm2/s on 40??CFesto special oil in 1 litre packing
Corrosion resistant class KBK 1 – low corrosion stress
Air purity class at the output Inert gasesCompressed air to ISO 8573-1:2010 [6:8:-]
Medium temperature [??C] -5 to 50
Oil viscosity ISO VG 32
ambient temperature [??C] -5 to 50
Product weight [g] 300
Fastening type pipe installationWith throughway boresWith mounting bracketSelectively:
Pressure gauge connection G1/8
Pneumatic connection 1 G1/4
Pneumatic connection 2 G1/4
Seals material NBR
Rotary button material POM
Filter material PE
Housing material PA reinforced
Clamps material PC
