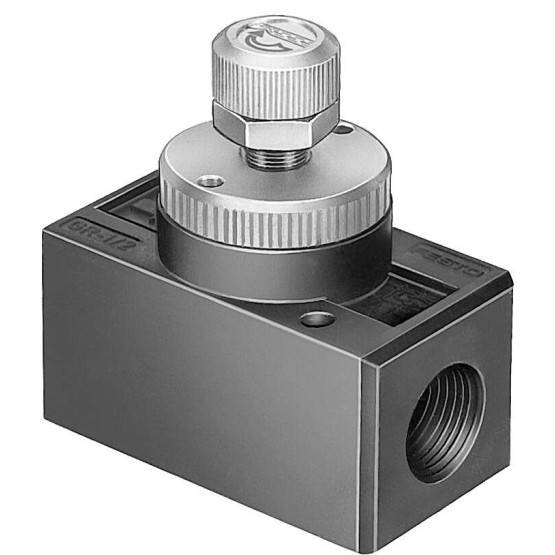

Description
Valve function Throttle blowback function
Pneumatic connection 1 G1/4
Pneumatic connection 2 G1/4
Setting element knurled screw
Fastening type pipe installation
Normal nominal flow in one-way flow control [l/min] 370,0
Normal nominal flow in check valve direction [l/min] 150
Operating pressure [bar] 0.5 to 10
ambient temperature [??C] -20 to 75
Housing material Aluminium wrought alloy
installation position arbitrary
Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
Information about operating and control medium Oiled operation possible (required in further operations)
Medium temperature [??C] -20 to 75
Product weight [g] 80,0
Material information RoHs compliant
Seals material NBR
Regulation screw material Steelzinc plating
Normal flow In one-way flow control 6 -> 0 bar [l/min] 570
Normal flow In check valve direction 6 -> 0 bar [l/min] 340
