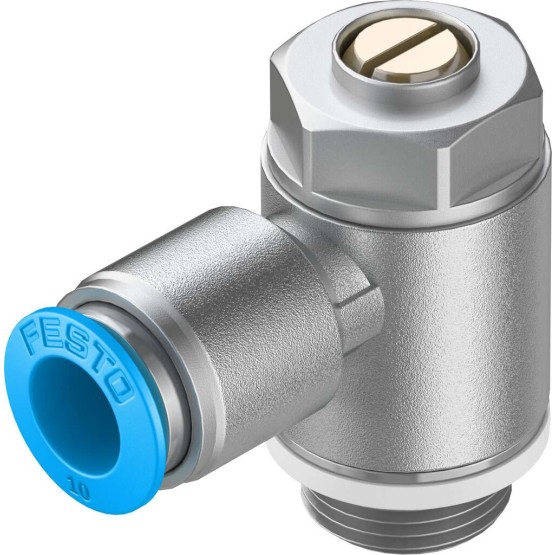

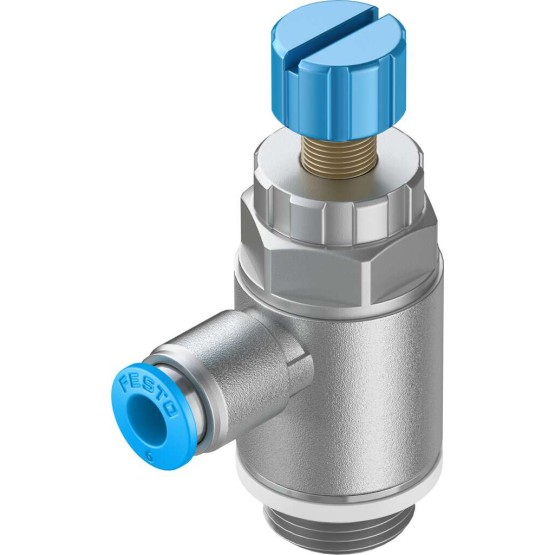

Description
Valve function Exhaust air flow control return function
Pneumatic connection 1 QS-6
Pneumatic connection 2 G3/8
Setting element slotted screw
Fastening type Screwable
Normal nominal flow in one-way flow control [l/min] 495
Normal nominal flow in check valve direction [l/min] 320 to 495
ambient temperature [??C] -10 to 60
Maritime classification see Certificate
installation position arbitrary
Normal flow In one-way flow control 6 -> 0 bar [l/min] 740
Normal flow In check valve direction 6 -> 0 bar [l/min] 840 to 890
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Medium temperature [??C] -10 to 60
Product weight [g] 60,0
Stud material Aluminium wrought alloy
Material information RoHs compliant
Seals material NBR
Regulation screw material Brass
Swivel connection material ChromatisedZinc pressure cast
Operating pressure complete temperature range [bar] 0.2 to 10
Nominal tightening torque [Nm] 10,0
Tolerance to nominal tightening torque ?I 10 %
Sleeve material POM
