Home » Products » HGPD-16-A-G1

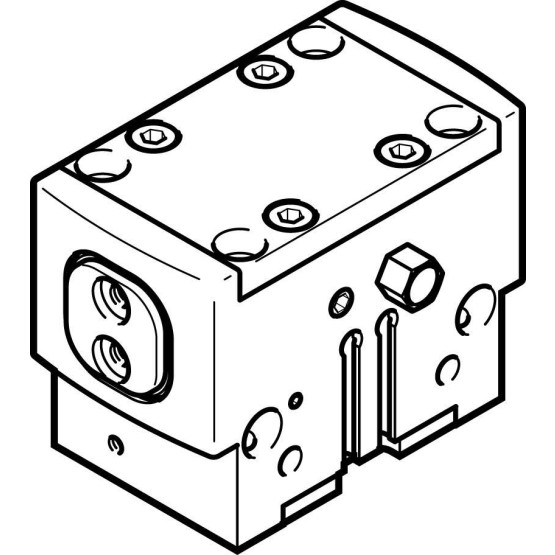

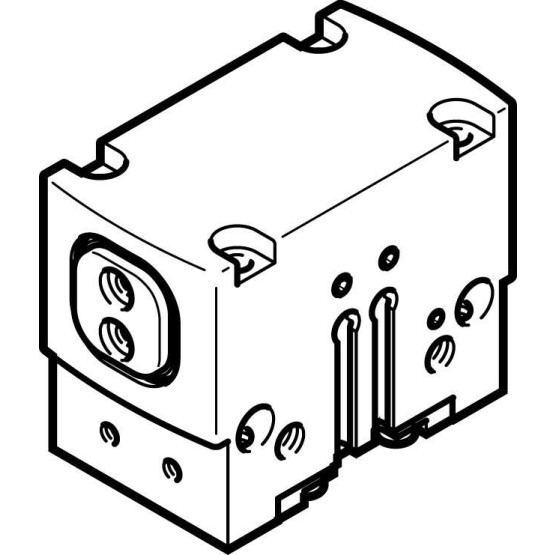

HGPD-16-A-G1

HGPD-16-A-G1

$1,178.78

Parallel Gripper is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:HGPD-16-A-G1

FESTO Order Number:1132937

SKU: HGPD-16-A-G1 Category: Tag:

Description

size 16
Stroke per gripper jaw [mm] 3
Max. exchange precision [mm] <= 0,2 mm Max. gripper jaw play ax, ay [deg] <= 0,1 deg Max. gripper jaw play Sz [mm] <= 0,02 mm Rotational symmetry [mm] <= 0,2 mm Repeatability grippers [mm] <= 0,03 mm Quantity Gripper jaws 2 installation position arbitrary Principle of operation double acting Gripper function Parallel Construction set up Inclined planeForce controlled movement cycle Position detection For proximity switch Operating pressure [bar] 4 to 8 Operating pressure blocking air [bar] 0 to 0.5 Max. working frequency gripper [Hz] <= 3 Hz Min. opening time a 6 bar [ms] 15 Min. closing time at 6 bar [ms] 32 Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Information about operating and control medium Oiled operation possible (required in further operations) Corrosion resistant class KBK 2 - moderate corrosion stress Protection category IP65 ambient temperature [??C] 5 to 60 Mass inertia [kg/cm2] 0,27 Max. torque on gripper jaws Mx static [Nm] 8 Max. torque on gripper jaws My static [Nm] 4 Max. torque on gripper jaws Mz static [Nm] 3 Lubrication interval guide elements [Mio SP] 5e+006 Max. mass per external griper finger [g] 25 Product weight [g] 117 Fastening type With Throughway bore and dowel pinWith Female thread and dowel pinSelectively:Female thread and centring sleeveWith Throughway bore and centring sleeve Pneumatic connection blocking air M3 Pneumatic connection M5 Material information Copper and PTFE-freeRoHs compliant Cover cap material High-alloyed stainless steels Housing material aluminiumanodized Gripper jaws material hardenedSteel Gripping force safety When opening
