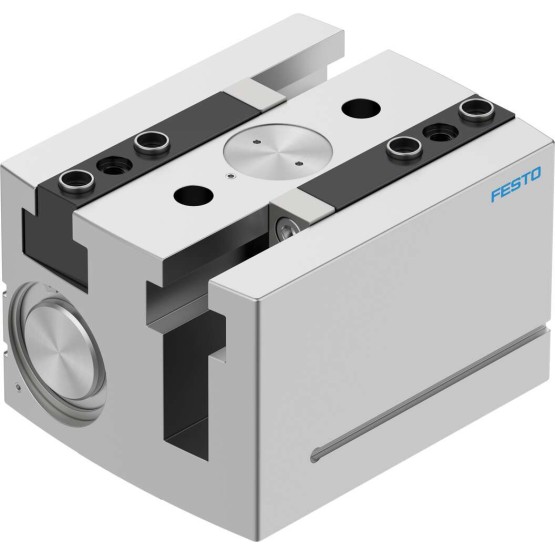

HGPL-63-150-A-B

$7,711.86

Parallel Gripper is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:HGPL-63-150-A-B

FESTO Order Number:3361494

SKU: HGPL-63-150-A-B Category: Tag:

Description

size 63
Stroke per gripper jaw [mm] 150
Max. exchange precision [mm] < 0,2 mm Max. gripper jaw play ax, ay [deg] < 0.2 deg Max. gripper jaw play Sz [mm] < 0,05 mm Rotational symmetry [mm] <= 0,2 mm Repeatability grippers [mm] < 0,03 mm Quantity Gripper jaws 2 installation position arbitrary Principle of operation double acting Gripper function Parallel Construction set up Double pistonGuidePiston pusherT-shapeToothed rack/pinion Position detection For proximity switch Open total gripping force at 6 bar [N] 2.466 Close total gripping force at 6 bar [N] 2.742 Operating pressure [bar] 3 to 8 Max. working frequency gripper [Hz] < 1 Hz Min. opening time a 6 bar [ms] 1.020 Min. closing time at 6 bar [ms] 850 Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Information about operating and control medium Oiled operation possible (required in further operations) Corrosion resistant class KBK 2 - moderate corrosion stress ambient temperature [??C] 5 to 60 Open gripper jaws at gripping force of 6 bar [N] 1.233 Close gripper jaws at gripping force at 6 bar [N] 1.371 Mass inertia [kg/cm2] 2.247,54 Max. force on gripper jaws Fz static [N] 9.000 Max. torque on gripper jaws Mx static [Nm] 300 Max. torque on gripper jaws My static [Nm] 200 Max. torque on gripper jaws Mz static [Nm] 250 Lubrication interval guide elements [Mio SP] 5 Max. mass per external griper finger [g] 940 Product weight [g] 18.100 Fastening type Female thread and centring sleeveWith Throughway bore and centring sleeve Pneumatic connection G1/8 Material information Copper and PTFE-freeRoHs compliant Housing material aluminiumSmooth anodised Gripper jaws material hardenedSteel
