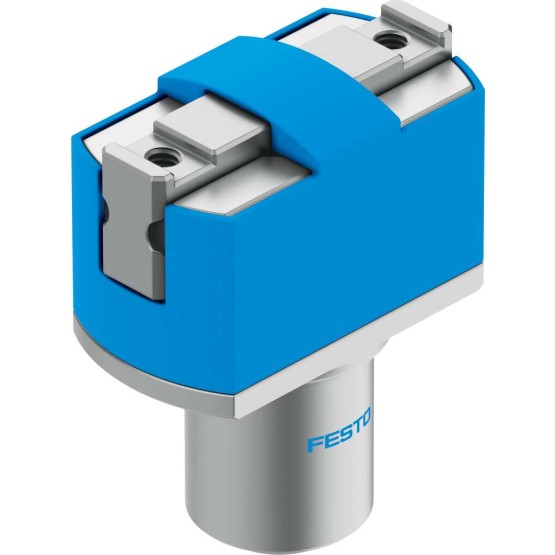

HGPP-10-A

HGPP-10-A

$874.36

Parallel Gripper is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:HGPP-10-A

FESTO Order Number:525658

SKU: HGPP-10-A Category: Tag:

Description

size 10
Stroke per gripper jaw [mm] 2,0
Max. exchange precision [mm] 0,1
Repeatability grippers [mm] <= 0,02 mm Quantity Gripper jaws 2 Principle of operation double acting Gripper function Parallel Construction set up Toothed rack/pinion Position detection For Hall sensorsFor inductive sensors Open total gripping force at 6 bar [N] 80 Close total gripping force at 6 bar [N] 80 Operating pressure [bar] 2 to 8 Max. working frequency gripper [Hz] 4 Min. opening time a 6 bar [ms] 22 Min. closing time at 6 bar [ms] 34 Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Information about operating and control medium Oiled operation possible (required in further operations) Corrosion resistant class KBK 2 - moderate corrosion stress ambient temperature [??C] 5 to 60 Open gripper jaws at gripping force of 6 bar [N] 40 Close gripper jaws at gripping force at 6 bar [N] 40 Max. force on gripper jaws Fz static [N] 40 Max. torque on gripper jaws Mx static [Nm] 1,5 Max. torque on gripper jaws My static [Nm] 1,5 Max. torque on gripper jaws Mz static [Nm] 1,5 Max. mass per external griper finger [g] 50 Product weight [g] 126 Fastening type with female thread Pneumatic connection M3 Material information Copper and PTFE-free Cover cap material POM Housing material Aluminium wrought alloyHard anodised Gripper jaws material Aluminium wrought alloynickel-plated
