HGRT-40-A

HGRT-40-A

$1,235.09

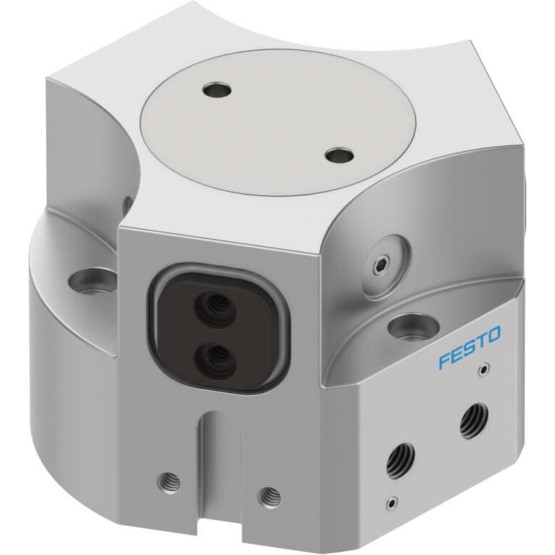

Radial Gripper is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:HGRT-40-A

FESTO Order Number:563912

SKU: HGRT-40-A Category: Tag:

Description

size 40
Max. exchange precision [mm] <= 0,2 mm Max. gripper jaw play ax, ay [deg] <= 0,1 deg Max. opening angle [deg] 180 Rotational symmetry [mm] <= 0,2 mm Repeatability grippers [mm] <= 0,02 mm Quantity Gripper jaws 2 installation position arbitrary Principle of operation double acting Gripper function radial Construction set up Force controlled movement cycle Position detection For inductive sensorsFor proximity switch Operating pressure [bar] 3 to 8 Max. working frequency gripper [Hz] <= 2 Hz Min. opening time a 6 bar [ms] 283 Min. closing time at 6 bar [ms] 320 Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Information about operating and control medium Oiled operation possible (required in further operations) Corrosion resistant class KBK 1 - low corrosion stress ambient temperature [??C] 5 to 60 Open total gripping force at 6 bar [Ncm] 3.892 Close total gripping force at 6 bar [Ncm] 3.526 Mass inertia [kg/cm2] 13,870 Max. force on gripper jaws Fz static [N] 400 Max. torque on gripper jaws My static [Nm] 17,5 Max. torque on gripper jaws Mz static [Nm] 1,6 Lubrication interval guide elements [Mio SP] 10 Product weight [g] 1.580 Fastening type Female thread and centring sleeve Pneumatic connection G1/8 Material information Copper and PTFE-freeRoHs compliant Housing material aluminiumSmooth anodised Gripper jaws material hardenedSteel
