Description

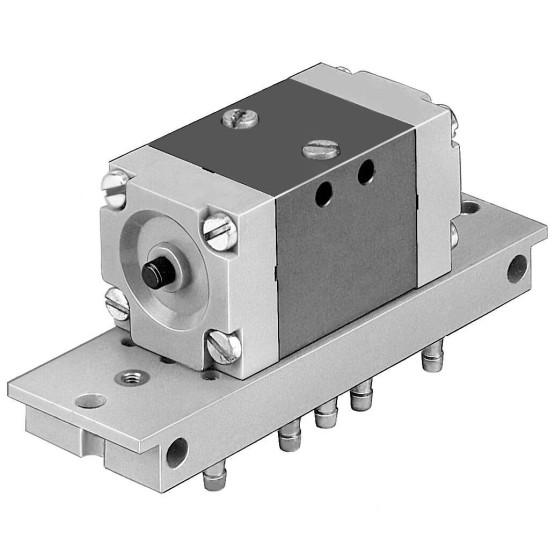

Valve function 3/2 bistable
Normal nominal flow [l/min] 100
Operating pressure [bar] -0.9 to 8
Construction set up Piston pusher
Nominal width [mm] 2,5
Shifting time um [ms] 7
Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
ambient temperature [??C] -10 to 60
Product weight [g] 75
Fastening type on connection plateon mounting framesWith throughway boresSelectively:
Support air control connection 12 PK-3
Support air control connection 14 PK-3
Pneumatic connection 1 PK-3
Pneumatic connection 4 PK-3
Pneumatic connection 5 PK-3
Material information LABS containing materials included
Connection plate material brassPPS reinforced
Seals material NBR
Housing material plasticZinc pressure cast
