J-5-3/8-B

J-5-3/8-B

$306.43

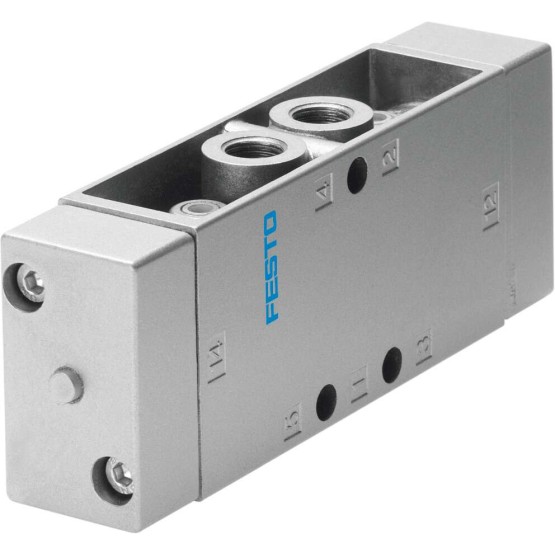

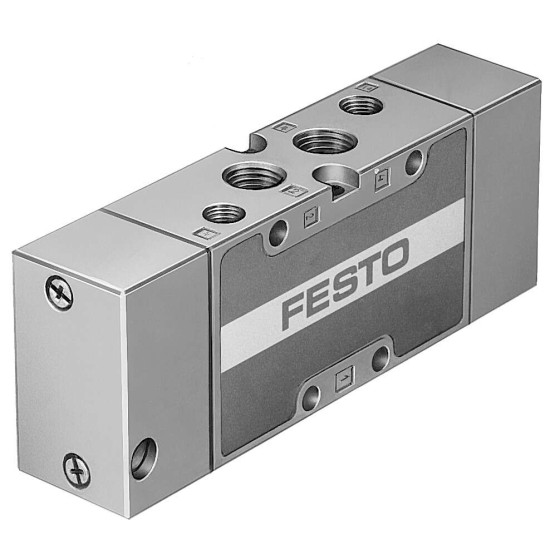

Pneumatic Valve is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:J-5-3/8-B

FESTO Order Number:14953

SKU: J-5-3/8-B Category: Tag:

Description

Valve function 5/2 bistable
Actuation type pneumatic
Build.width [mm] 40
Normal nominal flow [l/min] 2.000
Operating pressure [bar] -0.9 to 10
Construction set up Piston pusher
Nominal width [mm] 12
Pitch dimension [mm] 41
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Hand assist actuation none
Control type Direct
Control air supply external
Flow direction Reversible
??berdeckung positive ??berdeckung
Control pressure [bar] 2 to 10
Max. switching frequency [Hz] 3
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 1 – low corrosion stress
Bearing temperature [??C] -40 to 60
Medium temperature [??C] -10 to 60
control medium Compressed air to ISO 8573-1:2010 [7:4:4]
ambient temperature [??C] -10 to 60
Product weight [g] 550
Fastening type on PR stripWith throughway boresSelectively:
Control air 14 connection G1/8
Pneumatic connection 1 G3/8
Pneumatic connection 2 G3/8
Pneumatic connection 3 G3/8
Pneumatic connection 4 G3/8
Pneumatic connection 5 G3/8
Material information RoHs compliant
Seals material NBR
Housing material Aluminium die casting
Shifting time um [ms] 3
Control air 12 connection G1/8
