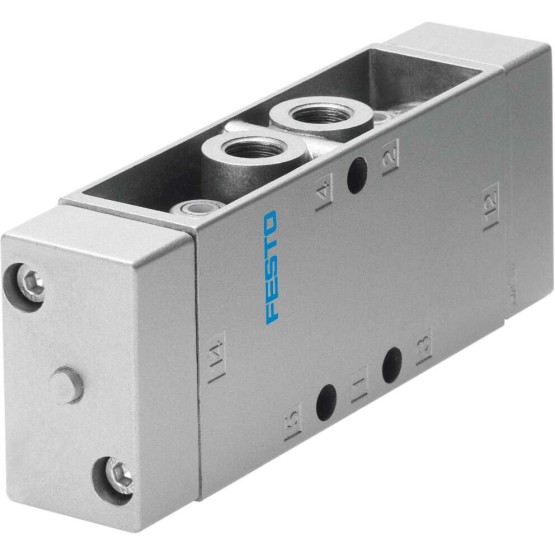

Pneumatic Valve is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .


FESTO Order Number:8824

SKU: JDH-5-1/8 Category: Tag:


Valve function 5/2 bi-stable dominated
Actuation type pneumatic
Build.width [mm] 26,0
Normal nominal flow [l/min] 600
Operating pressure [bar] 0 to 10
Construction set up Plate seat
Nominal width [mm] 5
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Control type Direct
Control air supply external
Flow direction Not reversible
??berdeckung negative ??berdeckung
Control pressure [bar] 2.3 to 10
Shifting time off [ms] 16
Shifting time on [ms] 9
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 1 – low corrosion stress
Bearing temperature [??C] -20 to 60
Medium temperature [??C] -10 to 60
ambient temperature [??C] -10 to 60
Product weight [g] 330
Fastening type With throughway boresSelectively:on terminal strip
Control air 12 connection G1/8
Pneumatic connection 1 G1/8
Pneumatic connection 2 G1/8
Pneumatic connection 3 G1/8
Material information RoHs compliant
Seals material NBRTPE-U(PU)
Housing material Aluminium die casting
Pitch dimension [mm] 27
Max. switching frequency [Hz] 12
Shifting time um [ms] 7
Pneumatic connection 4 G1/8
Pneumatic connection 5 G1/8
Control air 14 connection G1/8
