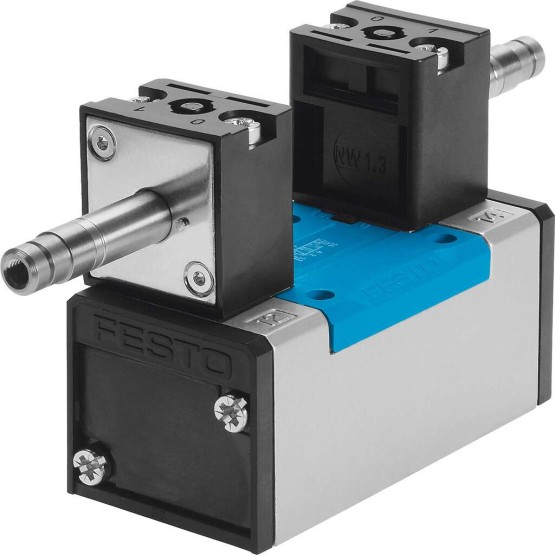

JMN1H-5/2-D-1-S-C

JMN1H-5/2-D-1-S-C

$177.70

Solenoid Valve is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:JMN1H-5/2-D-1-S-C

FESTO Order Number:159689

SKU: JMN1H-5/2-D-1-S-C Category: Tag:

Description

Valve function 5/2 bistable
Actuation type Electrical
Build.width [mm] 42
Normal nominal flow [l/min] 1.200
Operating pressure [bar] -0.9 to 16
Construction set up Piston pusher
Protection category IP65
Nominal width [mm] 8,0
Pitch dimension [mm] 43
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Complies to standard ISO 5599-1
Hand assist actuation With Accessories ratchetingtentative
ISO-Code 169
Control type pilot operated
Control air supply external
Flow direction Reversible
??berdeckung positive ??berdeckung
Max. positive test impulse at 0 signal [??s] 3.700
Max. negative test impulse for 1 signal [??s] 4.600
Coil characteristic value See solenoid coil, order separately
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Medium temperature [??C] -5 to 50
Sound level [dB(A)] 85
ambient temperature [??C] -5 to 50
Product weight [g] 610
Electrical connection Via N1 coil, order separately
Fastening type on connection plateWith throughway bores
Pneumatic connection 1 Connection plate Size 1 to ISO 5599-1
Pneumatic connection 2 Connection plate Size 1 to ISO 5599-1
Pneumatic connection 3 Connection plate Size 1 to ISO 5599-1
Pneumatic connection 4 Connection plate Size 1 to ISO 5599-1
Pneumatic connection 5 Connection plate Size 1 to ISO 5599-1
Material information RoHs compliant
Seals material HNBRNBR
Housing material Aluminium die casting
Shifting time um [ms] 18
Control pressure [bar] 2 to 10
control medium Compressed air to ISO 8573-1:2010 [7:4:4]
Control air 14 connection Connection plate Size 1 to ISO 5599-1
Control air 12 connection Connection plate Size 1 to ISO 5599-1
Maritime classification see Certificate
Oscillation strength Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
