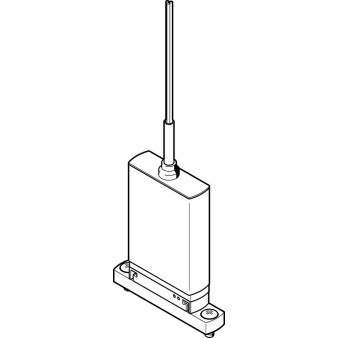

MHJ10-S-2,5-HF

Description

Valve function 2/2 closed monostable
Actuation type Electrical
Build.width [mm] 10
Normal nominal flow [l/min] 160
Operating pressure [bar] 0.5 to 6
Construction set up Poppet valve without reset spring
Reset mode Pneumatic spring
Protection category IP65
Pitch dimension [mm] 10,5
Information about operation Power supply must be able to deliver at least 1.7 A without a voltage breakthroughDo not operate without flow
Sealing principle Hard
installation position arbitrary
Hand assist actuation none
Control type Direct
Flow direction Not reversible
b-value 0.36
C-value [l/sbar] 0,66
Max. switching frequency [Hz] 500
Shifting time on at 4 bar and 24 V in new condition [ms] 1,2
Shifting time off at 4 bar and 24 V in new condition [ms] 0,6
Shifting time on at 0.5 bar and 24 V in new condition [ms] 1,0
Shifting time off at 0.5 bar and 24 V in new condition [ms] 0,8
Shifting time on at 6 bar and 24 V in new condition [ms] 1,3
Shifting time off at 6 bar and 24 V in new condition [ms] 0,6
Tolerance shifting time off +15 %/-25 %
Tolerance shifting time on ?I15 %
Operating voltage range DC [V] 21.6 to 26.4
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation not possible
Limits ambient and media temperature Depending on the switching frequency
Corrosion resistant class KBK 2 – moderate corrosion stress
Bearing temperature [??C] -20 to 50
Permitted surface temperature magnet [??C] 120
Medium temperature [??C] -5 to 60
ambient temperature [??C] -5 to 60
Max. tightening torque Valve fastening [Nm] 0,70
Product weight [g] 75
Electrical connection 3-wirecable
Fastening type on connection plate
Pneumatic connection 1 Connection plate
Pneumatic connection 2 Connection plate
Material information RoHs compliant
Seals material HNBR
Housing material PA reinforcedPPS reinforced
Screws material Steel
Operating conditions according to DIN/VDI 0580 S3 25% 20 min. for block mountingS3 50% 20 min. for single valve
KC-mark KC-EMV
CE certificate (see declaration of conformity) to EU EMC directive
Reverse polarity protection for operating voltage
Additional functions Spark suppressionHolding current reduction with energy recoveryProtection switch off
Eingangswiderstand [kOhm] 34
Coil characteristic value 24 V DC: Low current phase 3.2 W, high current phase 14,5 W
Trigger signal range DC [V] 3 to 30
Information about incoming current 0,09 – 0,44 mA bei einem Triggersignal von 3 – 15 V0,44 – 15,44 mA bei einem Triggersignal von 15 – 30 VAnstieg linear
Permitted voltage oscillations ?I 10 %
Cable length [MTR] 2,50
Cable sleeve material PUR
