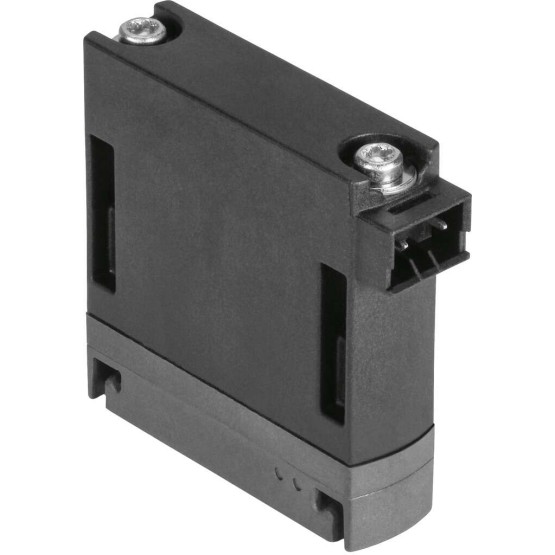

Description
Valve function 2/2 closed monostable
Actuation type Electrical
Build.width [mm] 9
Normal nominal flow [l/min] 160
Operating pressure [bar] 0.5 to 4
Construction set up Poppet valve without reset spring
Reset mode Pneumatic spring
Protection category IP40
Pitch dimension [mm] 9,5
Information about operation Do not operate without flowFor block assembly with flow max. ambient temperature 45 ??C.
Sealing principle Hard
installation position arbitrary
Hand assist actuation none
Control type Direct
Flow direction Not reversible
b-value 0.36
C-value [l/sbar] 0,66
Max. switching frequency [Hz] 500
Shifting time on at 4 bar and 24 V in new condition [ms] 1,0
Shifting time off at 4 bar and 24 V in new condition [ms] 0,4
Shifting time on at 4 bar and 48 V in new condition [ms] 0,8
Shifting time off at 4 bar and 48 V in new condition [ms] 0,4
Shifting time on at 4 bar and 12 V in new condition [ms] 1,3
Shifting time off at 4 bar and 12 V in new condition [ms] 0,5
Shifting time on at 0.5 bar and 24 V in new condition [ms] 0,8
Shifting time off at 0.5 bar and 24 V in new condition [ms] 0,5
Tolerance shifting time off +15 %/-25 %
Tolerance shifting time on ?I15 %
Operating voltage range DC [V] 12 to 53
Power-on time 100 %
Information about operating voltage Only with MHJ9-KMH-… line.
Coil resistance [Ohm] 2,5
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation not possible
Limits ambient and media temperature Depending on the switching frequency
Corrosion resistant class KBK 2 – moderate corrosion stress
Bearing temperature [??C] -20 to 50
Permitted surface temperature magnet [??C] 120
Medium temperature [??C] -5 to 60
ambient temperature [??C] -5 to 60
Max. tightening torque Valve fastening [Nm] 0,28
Product weight [g] 25
Electrical connection 2 pinPlug KMH
Fastening type on connection plate
Pneumatic connection 1 Connection plate
Pneumatic connection 2 Connection plate
Material information RoHs compliant
Seals material HNBR
Housing material PA reinforced
Screws material Steel
