Description
Model series MS
size 6
Pitch dimension [mm] 62
Safety function VentingPrevention of unexpected start up (venting)
Safety Integrity Level (SIL) Venting/ SIL 3Prevention of unexpected start up (venting) / SIL 3
Performance Level (PL) Venting/ Category 3, Performance Level dPrevention of unexpected start up (venting) / Category 3, Performance Level c
Information about force dynamic sampling Switching frequency at least 1/month
Construction set up Piston seat
Freedom from cross-talk no
Actuation type Electrical
Control air supply Internal
Sealing principle Soft
Exhaust function Cannot be throttled
Position detection principle Magnetic piston principle
Complies to standard DIN EN ISO 13849-1DIN EN ISO 13849-2
Hand assist actuation none
Reset mode Mechanical spring
Control type pilot operated
Valve function 3/2 closed monostablePressure build-up function
Operating pressure [bar] 3.5 to 10
C-value [l/sbar] 19,3
b-value 0.21
Normal nominal flow [l/min] 4.300
Normal flow Venting 6>0 bar [l/min] 9.000
Max. switching frequency [Hz] 1
Shifting time off [ms] 40
Shifting time on [ms] 130
Power-on time 100 %
Signal condition display LEDControl outputs
Nominal operating voltage DC [V] 24
Permitted voltage oscillations +10 % / -15 %
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 – moderate corrosion stress
Material information RoHs compliant
Protection category IP65With Socket
Medium temperature [??C] -10 to 50
ambient temperature [??C] -10 to 50
Bearing temperature [??C] -10 to 50
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Permission RCM mark
KC-mark KC-EMV
CE certificate (see declaration of conformity) to EU machinery directive
Food compatibility See expanded material information

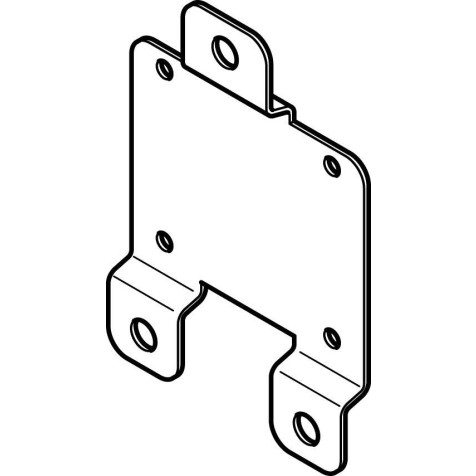

Fastening type pipe installationWith AccessoriesSelectively:
installation position arbitrary
Product weight [g] 1.900
Pneumatic connection 1 G1/2
Pneumatic connection 2 G1/2
Pneumatic connection 3 G1
Electrical connection 2-pinwiring diagram Form C acc. to EN 175301-803acc. to EN 175301-8032x plug
Housing material Aluminium die casting
Seals material NBR
Piston rod material High-alloyed stainless steels
Coil characteristic value 24 V DC: 1,8 W
Electrical connection: proximity switch M83 pinRotating thread2x Cable with plug
