MSB4-1/4:C3:J120:F12-WP

$388.47

Service Unit is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:MSB4-1/4:C3:J120:F12-WP

FESTO Order Number:8042667

SKU: MSB4-1/4:C3:J120:F12-WP Category: Tag:

Description

size 4
Model series MS
Actuation fuse Rotary button with stopperWith Accessories lockable
installation position vertical ?I 5??
Filter porosity [??m] 40
Condensate drain Manually rotating

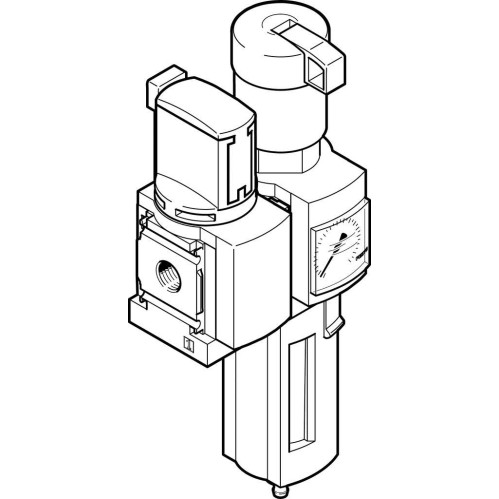

Construction set up Branching moduleSwitch on valveFilter regulator with pressure gauge
Controller function Output pressure constantWith Return current behaviourWith relievingWith Pre-pressure compensation
Clamp protection Plastic basket
pressure display with pressure gauge
Operating pressure [bar] 0.8 to 14
Pressure regulation range [bar] 0.5 to 7
Normal nominal flow [l/min] 1.750
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]Inert gases
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 – moderate corrosion stress
Bearing temperature [??C] -10 to 60
Food compatibility See expanded material information
Air purity class at the output Compressed air to ISO 8573-1:2010 [7:4:4]
Medium temperature [??C] 0 to 50
ambient temperature [??C] 0 to 50
Product weight [g] 1.500
Fastening type With Accessories
Pneumatic connection 1 G1/4
Pneumatic connection 2 G1/4
Pneumatic connection 3 G1/4
Housing material Aluminium die casting
Clamps material PC
