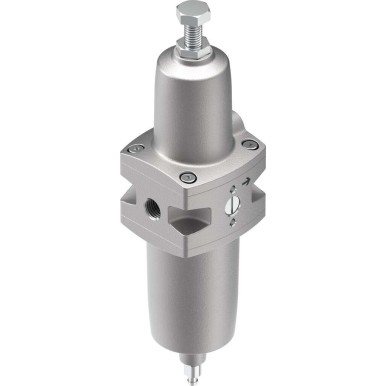

PCRP-64-N14-7-E-R1-M-T18

$349.08

Filter Regulator is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:PCRP-64-N14-7-E-R1-M-T18

FESTO Order Number:4787801

SKU: PCRP-64-N14-7-E-R1-M-T18 Category: Tag:

Description

size 64
Model series P
Actuation fuse Regulierschraube mit Konterung
installation position vertical ?I 5??
Filter porosity [??m] 40
Condensate drain Manually rotating
Construction set up Filter regulator without pressure gauge
Complies to standard NACE MR0175/ISO 15156 (Geh?use und Schale)
Max. condensate amount [ml] 30
Controller function mit Sekund?rentl??ftungmit Vordruckkompensation
pressure display G1/4 prepared
Operating pressure [bar] 1 to 20
Pressure regulation range [bar] 0.5 to 7
Max. pressure hysteresis [bar] 0,2
Max. normal flow [l/min] 3.980
Normal nominal flow [l/min] 3.240
Operating medium Inert gasesCompressed air to ISO 8573-1:2010 [-:4:-]
Information about operating and control medium Oiled operation possible (required in further operations)
Bearing temperature [??C] -20 to 80
Air purity class at the output Compressed air to ISO 8573-1:2010 [7:4:4]
Medium temperature [??C] -20 to 80
ambient temperature [??C] -20 to 80
Product weight [g] 1.965
Fastening type Leitungseinbauwahlweise:mit Befestigungsbausatz
Pressure gauge connection G1/4
Pneumatic connection 1 NPT1/4-18
Pneumatic connection 2 NPT1/4-18
Werkstoff Ablassschraube High-alloyed stainless steels
Werkstoffnummer Ablassschraube 1.4404/316L
Filter carrier material Cast stainless steel
Werkstoffnummer Filtertr?ger 1.4409/CF3M(316L)
Material information LABS containing materials includedRoHs compliant
Mounting bracket material High-alloyed stainless steels
Seals material CRNBR
Spring material High-alloyed stainless steels
Filter material High-alloyed stainless steels
Werkstoffnummer Filter 1.4404/316L
Housing material Cast stainless steel
Material number housing 1.4409/CF3M(316L)
Regulation screw material High-alloyed stainless steels
Clamps material Cast stainless steel
Werkstoffnummer Schale 1.4409/CF3M (316L)
