SDE5-V1-NF-Q6E-V-K

SDE5-V1-NF-Q6E-V-K

$109.55

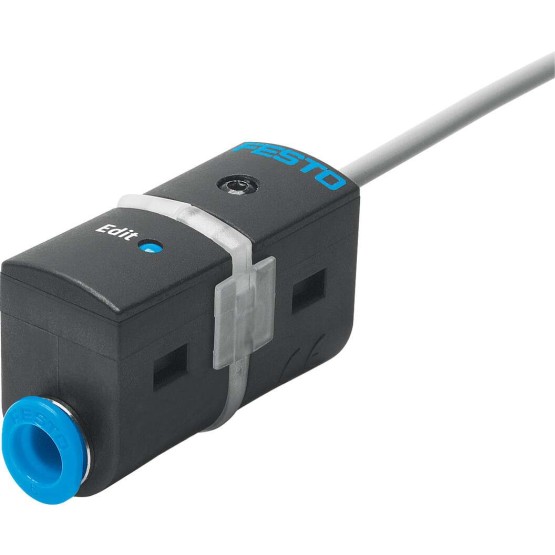

Pressure Sensor is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:SDE5-V1-NF-Q6E-V-K

FESTO Order Number:567470

SKU: SDE5-V1-NF-Q6E-V-K Category: Tag:

Description

Permission RCM markc UL us – Recognized (OL)
CE certificate (see declaration of conformity) acc. to EU-EMV Directiveacc. to EU-RoHS Directive
KC-mark KC-EMV
Material information RoHs compliant
Measured parameter Relative pressure
Measurement process Piezoresistive pressure sensor
Pressure measurement range starting value [bar] 0
Pressure measurement range end value [bar] -1
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible
Medium temperature [??C] 0 to 50
ambient temperature [??C] 0 to 50
Repeatability in ?? %FS [%FS] 0,3
Temperature coefficient in ?? %FS/K [%FS/K] 0,05
Short circuit resistance yes
Operating voltage range DC [V] 15 to 30
Reverse polarity protection for all electrical connections
Electrical connection 3-wirecableacc. to EN 60947-5-2
Fastening type With Accessories
installation position arbitrary
Pneumatic connection QS-6
Product weight [g] 47
Housing material PAPOM
Protection category IP40
Corrosion resistant class KBK 2 – moderate corrosion stress
Cable length [MTR] 2,5
Analogue output 0 – 10 V
Output characteristic curve starting value [V] 0
Output characteristic curve end value [V] 10
Accuracy analogue output FS [%FS] 3
Linearity error in ?? %FS [%FS] 0,3
Operation-readiness display LED green
