Home » Products » SIEH-M18B-PS-K-L-CR

SIEH-M18B-PS-K-L-CR

SIEH-M18B-PS-K-L-CR

$152.80

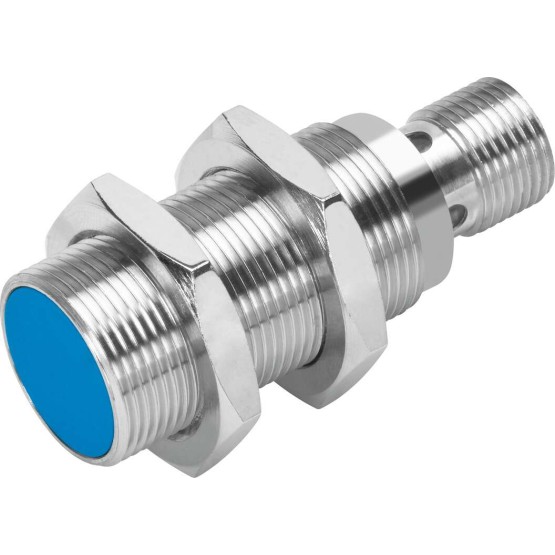

Proximity Sensor is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:SIEH-M18B-PS-K-L-CR

FESTO Order Number:538256

SKU: SIEH-M18B-PS-K-L-CR Category: Tag:

Description

Complies to standard EN 60947-5-2
Permission RCM markc UL us – Listed (OL)
CE certificate (see declaration of conformity) to EU EMC directive
Material information Copper and PTFE-free
Measurement switching distance [mm] 10
Secured safety distance [mm] 8,10
Reduction factors aluminium = 1,0Steel pc. 37 = 1.0Stainless steel 1 mm thick = 0.4Stainless steel 2 mm thick = 0.8Copper = 0.8brass = 1,3
ambient temperature [??C] -25 to 70
Control output PNP
Switching element function NO contact
Hysteresis [mm] <= 1,22 mm Max. switching frequency [Hz] 200 Max. output current [mA] 200 Voltage drop [V] 2 Inductive protection circuit IntegratedOutput current < 100mAand switching frequency < 10Hz Short circuit resistance Cycling Operating voltage range DC [V] 10 to 30 residual ripple 20 % Empty run current [mA] < 12 mA Reverse polarity protection for all electrical connections Electrical connection 3-wirecable Cable sleeve material TPE-U(PUR) size M18 Fastening type With locking nut Integration type flush Product weight [g] 115 Housing material High-alloyed steel Switching status indicator LED yellow Ambient temperature for moving cable placements [??C] -5 to 70 Protection category IP67IP69K Corrosion resistant class KBK 2 - moderate corrosion stress Reproducibility shifting time FS [mm] 0,5 Sensor integration strength [bar] 60
