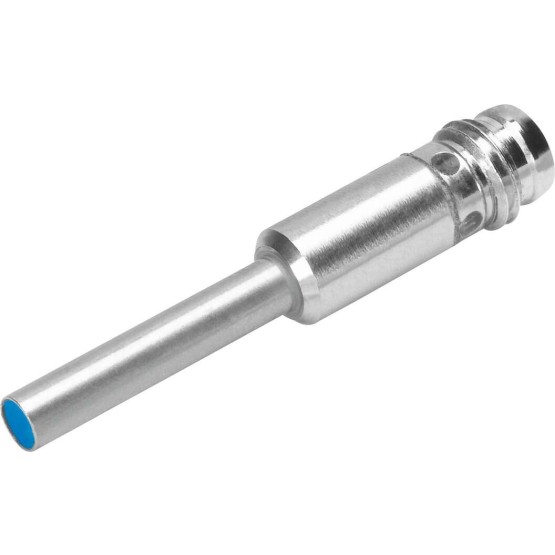

SIEN-4B-PS-S-L

SIEN-4B-PS-S-L

$100.09

Proximity Sensor is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:SIEN-4B-PS-S-L

FESTO Order Number:150363

SKU: SIEN-4B-PS-S-L Category: Tag:

Description

Complies to standard EN 60947-5-2
Permission RCM markc UL us – Listed (OL)
CE certificate (see declaration of conformity) to EU EMC directive
Material information Copper and PTFE-free
Measurement switching distance [mm] 0,8
Secured safety distance [mm] 0,64
Reduction factors aluminium = 0,4stainless steel St 18/8 = 0,7Copper = 0.3brass = 0,4Steel pc. 37 = 1.0
ambient temperature [??C] -25 to 70
Repeatability [mm] 0,04
Control output PNP
Switching element function NO contact
Max. switching frequency [Hz] 3.000
Max. switching frequency DC [Hz] 3.000
Max. output current [mA] 200
Voltage drop [V] 2
Short circuit resistance Cycling
Operating voltage range DC [V] 10 to 30
residual ripple 10 %
Empty run current [mA] <= 10 mA Reverse polarity protection for all electrical connections Electrical connection M8x13 pinPlug size 4 mm Fastening type clamped Integration type flush Product weight [g] 9,0 Housing material High-alloyed stainless steels Switching status indicator LED yellow Protection category IP67
