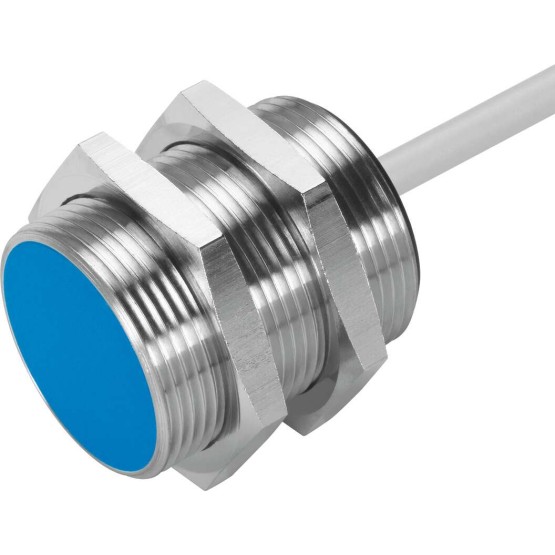

SIEN-M30B-PO-S-L

SIEN-M30B-PO-S-L

$90.18

Proximity Sensor is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:SIEN-M30B-PO-S-L

FESTO Order Number:150439

SKU: SIEN-M30B-PO-S-L Category: Tag:

Description

Complies to standard EN 60947-5-2
Permission RCM markc UL us – Listed (OL)
CE certificate (see declaration of conformity) to EU EMC directive
Material information Copper and PTFE-freeRoHs compliant
Measurement switching distance [mm] 10,0
Secured safety distance [mm] 8,10
Reduction factors aluminium = 0,45stainless steel St 18/8 = 0,8Copper = 0.4Steel pc. 37 = 1.0brass = 0,55
ambient temperature [??C] -25 to 70
Repeatability [mm] 0,50
Control output PNP
Switching element function NC contact
Max. switching frequency [Hz] 1.200
Max. output current [mA] 200
Voltage drop [V] <= 2 V Short circuit resistance Cycling Operating voltage range DC [V] 10 to 30 residual ripple ?I 20 % Empty run current [mA] <= 10 mA Reverse polarity protection for all electrical connections Electrical connection M12x13 pinPlug size M30x1,5 Fastening type With locking nut Integration type flush Product weight [g] 100,0 Housing material PAPBTPbrassChrome plated Switching status indicator LED yellow Protection category IP67 Ambient temperature for moving cable placements [??C] -5 to 70 Surge voltage strength [kV] 0,8 Degree of contamination 3 Hysteresis [mm] <= 1,1 mm Torque [Nm] 40
