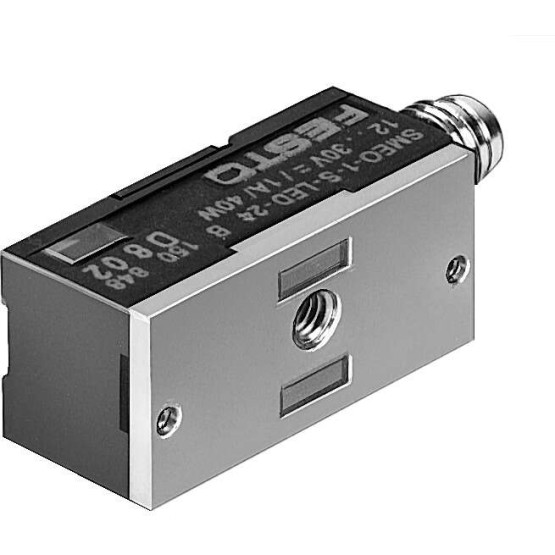

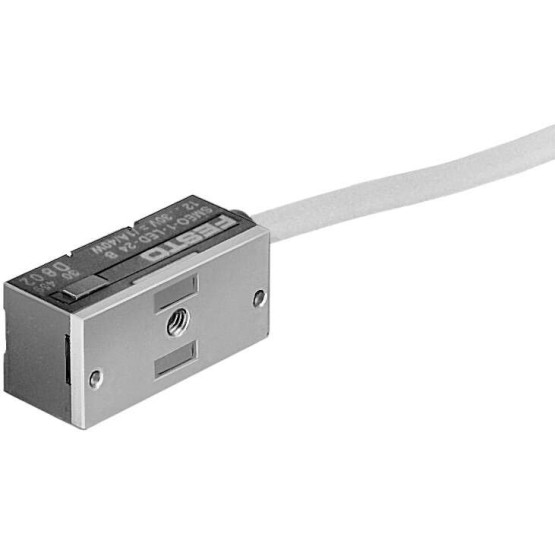

SMEO-1-LED-24-K5-B

SMEO-1-LED-24-K5-B

$137.10

Proximity Sensor is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:SMEO-1-LED-24-K5-B

FESTO Order Number:151672

SKU: SMEO-1-LED-24-K5-B Category: Tag:

Description

Design Block structure
Material information Copper and PTFE-free
Measurement principle Reed magnetic
ambient temperature [??C] -20 to 70
Control output Bipolar contact
Switching element function NO contact
Reproducibility of the switching value ?I 0,1 mm
Switch on time [ms] <= 0,5 ms Max. output current [mA] 1.000 Max. switching capacity AC [VA] 27 Max. switching capacity DC [W] 27 Short circuit resistance no Overload resistant Not available Operating voltage range DC [V] 12 to 27 Reverse polarity protection no Electrical connection 3-wirecable Fastening type With Accessories installation position arbitrary Product weight [g] 130 Housing material Zinc pressure cast Ambient temperature for moving cable placements [??C] -5 to 70 Protection category IP67 Permission RCM mark CE certificate (see declaration of conformity) to EU EMC directive Operating voltage range AC [V] 12 to 27 Switching status indicator LED yellow Connection outlet direction along Cable length [MTR] 5,0 Cable sleeve material TPE-U(PUR)
