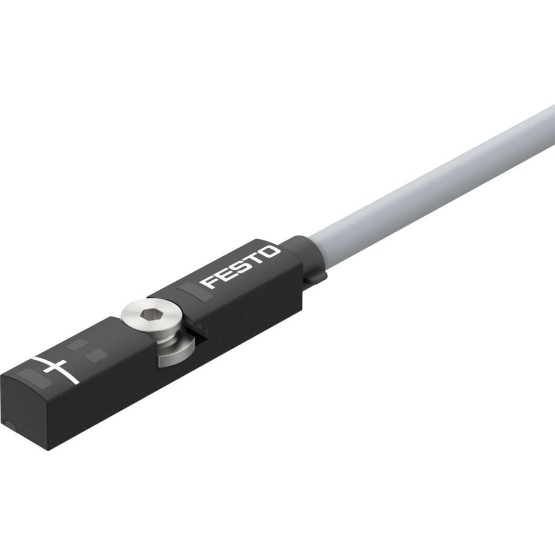

SMT-8M-A-PS-24V-E-0,3-M8D

SMT-8M-A-PS-24V-E-0,3-M8D

$43.22

Proximity Sensor is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:SMT-8M-A-PS-24V-E-0,3-M8D

FESTO Order Number:574334

SKU: SMT-8M-A-PS-24V-E-0,3-M8D Category: Tag:

Description

Design For T-slot
Based on standard EN 60947-5-2
Permission RCM markc UL us – Listed (OL)
CE certificate (see declaration of conformity) acc. to EU-EMV Directiveacc. to EU-RoHS Directive
KC-mark KC-EMV
Special features Oil resistant
Material information halogen freeCopper and PTFE-freeRoHs compliant
Measured parameter Position
Measurement principle Magnetoresistive
ambient temperature [??C] -40 to 85
Repeatability [mm] 0,2
Control output PNP
Switching element function NO contact
Switch on time [ms] <= 1,3 ms Switch off time [ms] <= 1,4 ms Max. switching frequency [Hz] 180 Max. output current [mA] 100 Max. output current in fastening sets [mA] 100 Max. switching capacity DC [W] 2,8 Max. switching capacity DC in fastening sets [W] 2,8 Voltage drop [V] < 1,5 V Short circuit resistance yes Overload resistant Available Rated operating voltage DC [V] 24 Operating voltage range DC [V] 5 to 30 Reverse polarity protection for all electrical connections Electrical connection 1, connection type Cable with plug Electrical connection 1, connection technology M8x1 A coded to EN 61076-2-104 Electrical connection 1, number of pins / wires 3 Electrical connection 1, fastening type Screw lock Connection outlet direction along Test conditions line Bending radius strength to Festo standardCable track: 5 million cycles, bending radius 28 mmTest conditions on requestTorsional strength > 300,000 cycles, ??270??/0.1 m
Cable length [MTR] 0,3
Line properties Cable track+robot
Cable shield colour Grey
Cable sleeve material TPE-U(PUR)
Fastening type Insertable from above into the slotPermanently screwed
Max. tightening torque [Nm] 0,6
installation position arbitrary
Product weight [g] 8,9
Housing colour black
Housing material High-alloyed stainless steelsPA reinforcedbrass nickel-plated
Switching status indicator LED yellow
Functional reserve display LED orange
Ambient temperature for moving cable placements [??C] -20 to 85
Protection category IP65IP68IP69K
