Home » Products » SMTO-1-NS-S-LED-24-C

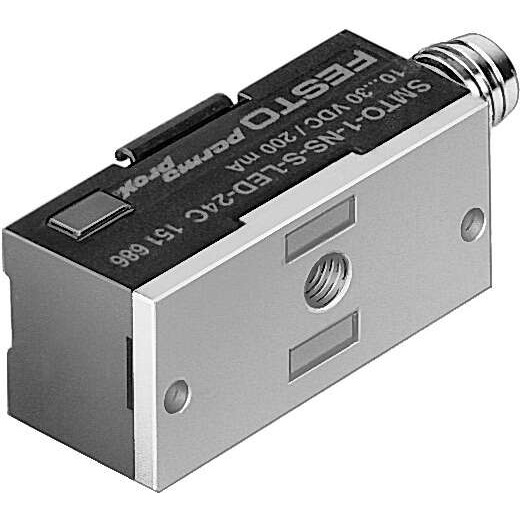

SMTO-1-NS-S-LED-24-C

SMTO-1-NS-S-LED-24-C

$180.28

Proximity Sensor is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:SMTO-1-NS-S-LED-24-C

FESTO Order Number:151686

SKU: SMTO-1-NS-S-LED-24-C Category: Tag:

Description

Design Block structure
Permission RCM mark
CE certificate (see declaration of conformity) to EU EMC directive
Material information Copper and PTFE-free
Measurement principle Inductive magnet
ambient temperature [??C] -25 to 70
Control output NPN
Switching element function NO contact
Reproducibility of the switching value ?I 0,1 mm
Switch on time [ms] <= 1 ms Switch off time [ms] <= 1 ms Max. output current [mA] 200 Max. switching capacity DC [W] 6 Voltage drop [V] <= 3 V Residual current [mA] <= 0,01 mA Short circuit resistance Cycling Overload resistant Available Operating voltage range DC [V] 10 to 30 Reverse polarity protection for all electrical connections Electrical connection M8x13 pinPlug Connection outlet direction along Fastening type With Accessories Max. tightening torque [Nm] 0,3 Product weight [g] 20 Housing material PCPETPOMPURSteelZinc pressure cast Switching status indicator LED yellow Protection category IP67
