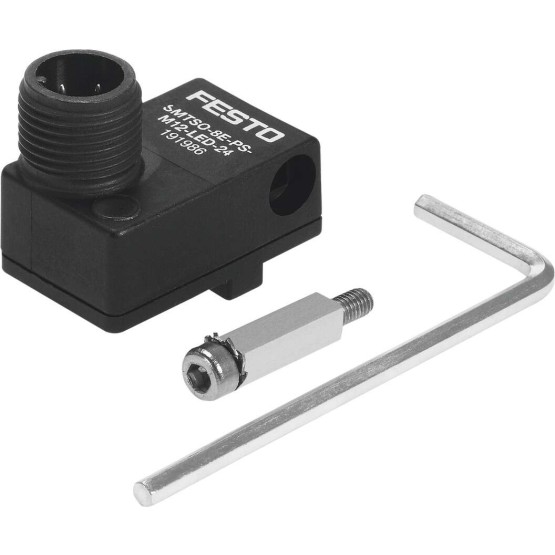

SMTSO-8E-PS-M12-LED-24

SMTSO-8E-PS-M12-LED-24

$197.71

Proximity Sensor is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:SMTSO-8E-PS-M12-LED-24

FESTO Order Number:191986

SKU: SMTSO-8E-PS-M12-LED-24 Category: Tag:

Description

Design For T-slot
Permission RCM mark
CE certificate (see declaration of conformity) to EU EMC directive
Material information Copper and PTFE-free
Measurement principle Inductive magnet
ambient temperature [??C] -25 to 70
Repeatability [mm] 0,2
Control output PNP
Switching element function NO contact
Switch on time [ms] 38
Switch off time [ms] 20
Max. output current [mA] 200
Max. switching capacity DC [W] 6,0
Voltage drop [V] <= 1,8 V Residual current [mA] <= 0,01 mA Short circuit resistance yes Overload resistant Available Operating voltage range DC [V] 10 to 30 Reverse polarity protection for all electrical connections Electrical connection 1, connection type Plug Electrical connection 1, connection technology M12x1 A coded to EN 61076-2-101 Electrical connection 1, number of pins / wires 3 Connection outlet direction horizontal Max. tightening torque plug [Nm] 0,5 Fastening type With Accessories Product weight [g] 19 Housing material PATPE-U(PU)Aluminium wrought alloyHigh-alloyed stainless steels Switching status indicator LED yellow Protection category IP65IP67 Special features Welding field immuneresistant to welding spatter Electrical connection 1, fastening type Screw lock Noise immunity to magnetic fields 45 - 65 HzMagnetic alternating field
