Home » Products » SPAE-V1R-S6-PNLK-2.5K

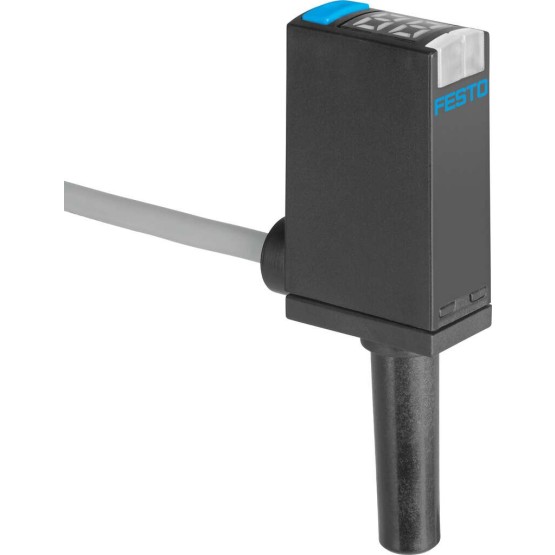

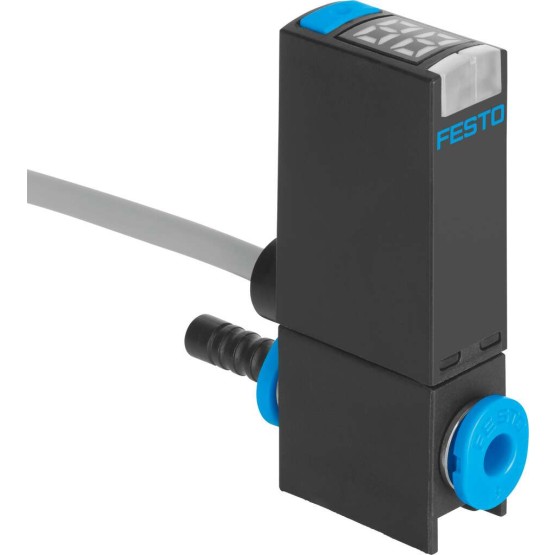

SPAE-V1R-S6-PNLK-2.5K

$109.53

Pressure Sensor is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:SPAE-V1R-S6-PNLK-2.5K

FESTO Order Number:8001441

SKU: SPAE-V1R-S6-PNLK-2.5K Category: Tag:

Description

Permission RCM markc UL us – Recognized (OL)
CE certificate (see declaration of conformity) acc. to EU-EMV Directiveacc. to EU-RoHS Directive
KC-mark KC-EMV
Material information RoHs compliant
Measured parameter Relative pressure
Measurement process Piezoresistive pressure sensor with display
Pressure measurement range starting value [bar] 0
Pressure measurement range end value [bar] -1
Overload range [bar] 5
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible
Medium temperature [??C] 0 to 50
ambient temperature [??C] 0 to 50
Resolution analogue-digital converter [Bit] 10
Accuracy FS [%FS] 1,5
Repeatability in ?I %FS [%FS] 0,3
Temperature coefficient in ?I %FS/K [%FS/K] 0,05
Control output PNP/NPN switchable
Switch function Freely programmable
Switching element function NC contactNO contactSwitchable
Max. output current [mA] 100
display range starting value [%FS] 0
Display range end value [%FS] 99
Short circuit resistance yes
Report IO-Link
IO-Link, report Device V 1.1
IO-Link, profile Smart sensor profile
IO-Link, function classes Teach channelDiagnosisIdentificationBinary data channel (BDC)Process data variables (PDV)
IO-Link, communication mode COM2 (38.4 kBaud)
IO-Link, SIO mode support yes
IO-Link, port type A
IO-Link, process data width OUT 0 Bytes
IO-Link, process data width IN 2 Bytes
IO-Link, process data contents IN 14 bit PDV (pressure measurement)2 bit BDC (pressure monitoring)
IO-Link, minimum cycle time 3 ms
IO-Link, data memory needed [Byte] 500
Operating voltage range DC [V] 18 to 30
Reverse polarity protection for all electrical connections
Electrical connection 3-wirecableOpen end
Cable length [MTR] 2,5
Fastening type Pluggable
installation position arbitrary
Pneumatic connection Plug sleeve QS-6
Product weight [g] 40
Housing material PA reinforced
Gasket material NBR
Display type LED display2 digit
Presentable unit(s) %FS
Switching status indicator LED yellow
Setting options IO-LinkTeach-In??ber Display und Tasten
Tamper-proof fuse PIN code
Settings range threshold value [%] 1 to 98
Protection category IP40
Corrosion resistant class KBK 2 – moderate corrosion stress
