SPAN-B2R-M5F-PN-PN-L1

$134.36

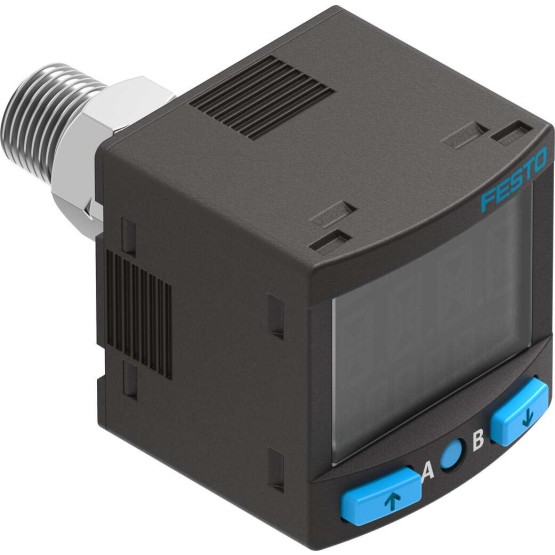

Pressure Sensor is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:SPAN-B2R-M5F-PN-PN-L1

FESTO Order Number:8035551

SKU: SPAN-B2R-M5F-PN-PN-L1 Category: Tag:

Description

Permission RCM markc UL us – Listed (OL)
CE certificate (see declaration of conformity) acc. to EU-EMV Directiveacc. to EU-RoHS Directive
KC-mark KC-EMV
Certified awarding point UL E322346
Material information RoHs compliant
Measured parameter Relative pressure
Measurement process Piezoresistive pressure sensor
Druckmessbereich Anfangswert (MPa) [MPa] -0,1
Pressure measurement range starting value [bar] -1
Druckmessbereich Anfangswert (psi) [psi] -14,5
Druckmessbereich Endwert (MPa) [MPa] 0,1
Pressure measurement range end value [bar] 1
Druckmessbereich Endwert (psi) [psi] 14,5
Overload range [bar] 5
Overload pressure [MPa] 0,5
??berlastdruck (psi) [psi] 72,5
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]Inert gases
Information about operating and control medium Oiled operation possible
Medium temperature [??C] 0 to 50
ambient temperature [??C] 0 to 50
Accuracy FS [%FS] 1,5
Repeatability in ?I %FS [%FS] 0,3
Temperature coefficient in ?I %FS/K [%FS/K] 0,05
Control output 2 x PNP or 2 x NPN switchable
Switch function Window comparatorThreshold comparatorAuto difference monitoring
Switching element function Opener/closer switchable
Max. output current [mA] 100
Short circuit resistance yes
Operating voltage range DC [V] 15 to 30
Reverse polarity protection for all electrical connections
Electrical connection 1, connection type Plug
Electrical connection 1, connection technology Wiring diagram L1J
Electrical connection 1, number of pins / wires 4
Fastening type Front panel integrationWith Wall / flat holder
installation position arbitrary
Pneumatic connection female thread M5
Product weight [g] 34
Housing material PA reinforced
From medium contacting materials FPMNBRPA-verst?rktMessing, vernickelt
Display type Illuminating LCD
Presentable unit(s) MPabarinchH2OinchHgkPakgf/cm2mbarmmHgpsi
Setting options Teach-inVia display and buttons
Tamper-proof fuse PIN code
Settings range threshold value [%] 0 to 100
Settings range hysteresis [%] 0 to 90
Protection category IP40
Corrosion resistant class KBK 2 – moderate corrosion stress
