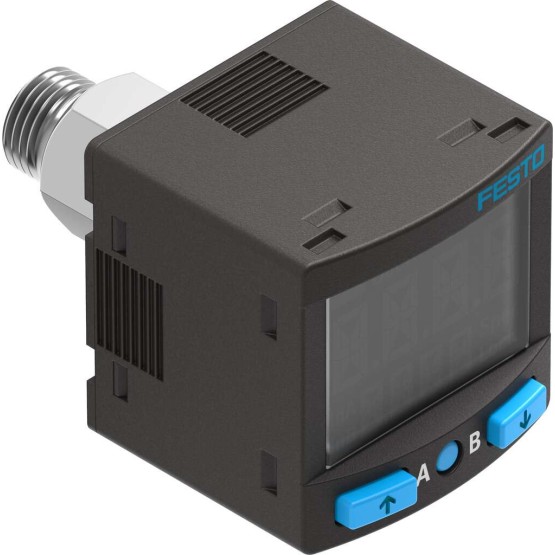

Description
Permission RCM markc UL us – Listed (OL)
CE certificate (see declaration of conformity) acc. to EU-EMV Directiveacc. to EU-RoHS Directive
KC-mark KC-EMV
Certified awarding point UL E322346
Material information RoHs compliant
Measured parameter Relative pressure
Measurement process Piezoresistive pressure sensor
Druckmessbereich Anfangswert (MPa) [MPa] -0,1
Pressure measurement range starting value [bar] -1
Druckmessbereich Anfangswert (psi) [psi] -14,5
Druckmessbereich Endwert (MPa) [MPa] 0,1
Pressure measurement range end value [bar] 1
Druckmessbereich Endwert (psi) [psi] 14,5
Overload range [bar] 5
Overload pressure [MPa] 0,5
??berlastdruck (psi) [psi] 72,5
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]Inert gases
Information about operating and control medium Oiled operation possible
Medium temperature [??C] 0 to 50
ambient temperature [??C] 0 to 50
Accuracy FS [%FS] 1,5
Repeatability in ?I %FS [%FS] 0,3
Temperature coefficient in ?I %FS/K [%FS/K] 0,05
Control output 2 x PNP or 2 x NPN switchable
Switch function Window comparatorThreshold comparatorAuto difference monitoring
Switching element function Opener/closer switchable
Max. output current [mA] 100
Short circuit resistance yes
Operating voltage range DC [V] 15 to 30
Reverse polarity protection for all electrical connections
Electrical connection 1, connection type Plug
Electrical connection 1, connection technology Wiring diagram L1J
Electrical connection 1, number of pins / wires 4
Fastening type Front panel integrationWith Wall / flat holderWith thread
installation position arbitrary
Pneumatic connection Male thread R1/8female thread M5
Product weight [g] 46
Housing material PA reinforced
From medium contacting materials FPMNBRPA-verst?rktMessing, vernickelt
Display type Illuminating LCD
Presentable unit(s) MPabarinchH2OinchHgkPakgf/cm2mbarmmHgpsi
Setting options Teach-inVia display and buttons
Tamper-proof fuse PIN code
Settings range threshold value [%] 0 to 100
Settings range hysteresis [%] 0 to 90
Protection category IP40
Corrosion resistant class KBK 2 – moderate corrosion stress
