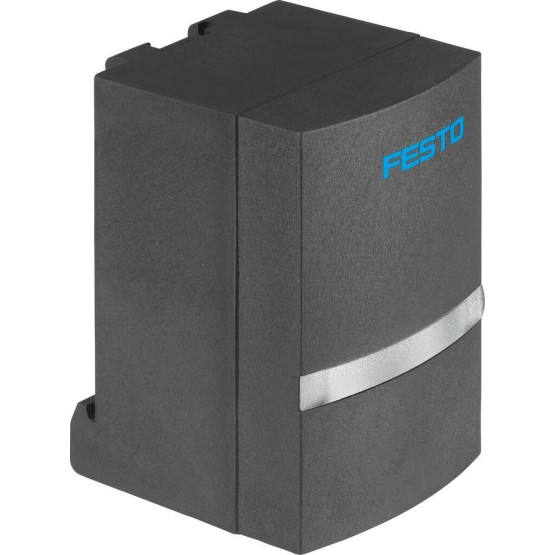

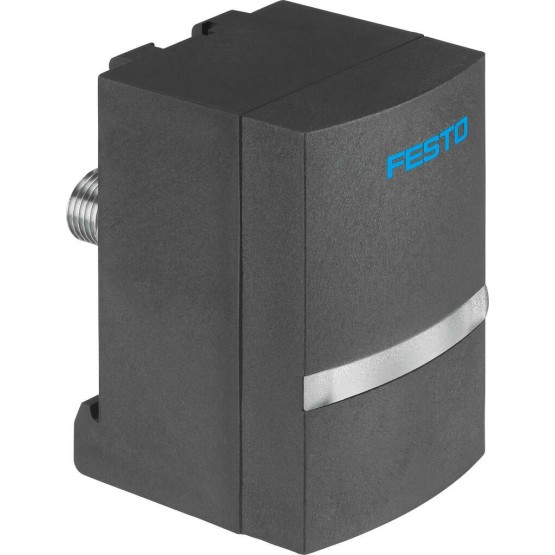

SPAU-P10R-H-Q4D-LK-A-M12D

$154.41

Pressure Sensor is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:SPAU-P10R-H-Q4D-LK-A-M12D

FESTO Order Number:8003350

SKU: SPAU-P10R-H-Q4D-LK-A-M12D Category: Tag:

Description

Permission RCM markc UL us – Listed (OL)
CE certificate (see declaration of conformity) acc. to EU-EMV Directiveacc. to EU-RoHS Directive
KC-mark KC-EMV
Material information RoHs compliant
Measured parameter Relative pressure
Measurement process Piezoresistive pressure sensor
Pressure measurement range starting value [bar] 0
Pressure measurement range end value [bar] 10
Overload range [bar] 15
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]Inert gases
Information about operating and control medium Oiled operation possible
Medium temperature [??C] 0 to 50
ambient temperature [??C] 0 to 50
Resolution analogue-digital converter [Bit] 12
Accuracy FS [%FS] 1,5
Repeatability in ?I %FS [%FS] 0,3
Temperature coefficient in ?I %FS/K [%FS/K] 0,05
Control output 2xPNP
Switch function Freely programmable
Switching element function Opener/closer switchable
Max. output current [mA] 100
Analogue output 4 – 20 mA
Rise time [ms] 3
Max. load resistance current output [Ohm] 500
Min. load resistance voltage output [kOhm] 10
Short circuit resistance yes
Report IO-Link
IO-Link, report Device V 1.1
IO-Link, profile Smart sensor profile
IO-Link, function classes Teach channelDiagnosisIdentificationBinary data channel (BDC)Process data variables (PDV)
IO-Link, communication mode COM2 (38.4 kBaud)
IO-Link, SIO mode support yes
IO-Link, port type A
IO-Link, process data width OUT 0 Bytes
IO-Link, process data width IN 2 Bytes
IO-Link, process data contents IN 14 bit PDV (pressure measurement)2 bit BDC (pressure monitoring)
IO-Link, minimum cycle time 3 ms
IO-Link, data memory needed [Byte] 500
Operating voltage range DC [V] 20 to 30
Reverse polarity protection for all electrical connections
Electrical connection 1, connection type Plug
Electrical connection 1, connection technology M12x1 A coded to EN 61076-2-101
Electrical connection 1, number of pins / wires 4
Fastening type With Slot rail
installation position arbitrary
Pneumatic connection QS-4
Product weight [g] 65
Display type LED
Presentable unit(s) psiMPabarinchH2OinchHgkPakgf/cm2mmHg
Setting options IO-Link
Tamper-proof fuse IO-Link
Settings range threshold value [%] 0 to 100
Settings range hysteresis [%] 0 to 90
Protection category IP65IP67
Corrosion resistant class KBK 2 – moderate corrosion stress
