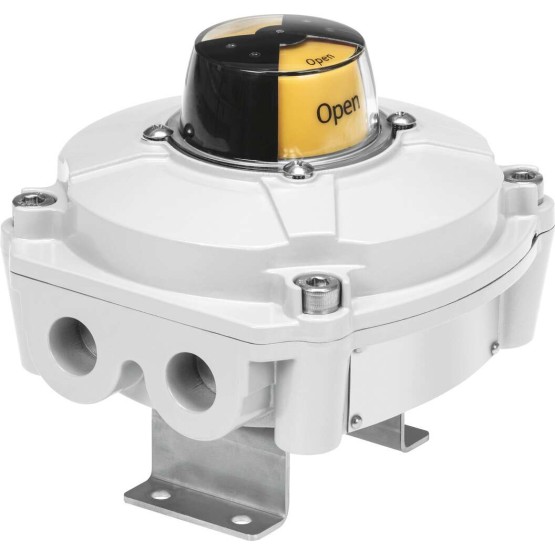

SRBE-CA3-YR90-N-1-P-C2N12-C1

$384.38

Limit Switch is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:SRBE-CA3-YR90-N-1-P-C2N12-C1

FESTO Order Number:3998920

SKU: SRBE-CA3-YR90-N-1-P-C2N12-C1 Category: Tag:

Description

Design Angular
Based on standard EN 60947-5-2ISO 5211VDI/VDE 3845
CE certificate (see declaration of conformity) to EU EMC directive
ATEX gas category II 2G
Ex ignition protection type gas AEx d IIB T5 GbAEx nA IIC T5 GcEx d IIB T5 GbEx nA IIC T5 Gc
ATEX dust category II 2D
Ex ignition protection type dust AEx tb IIIC T108??C DbEx tb IIIC T108??C Db
Ex protection approval outside of the EU Class I, Div. 1 (CA)Class I, Div. 1 (US)Class I, Div. 2 (CA)Class I, Div. 2 (US)Class II, Div. 1 (CA)Class II, Div. 1 (US)Class III (CA)Class III (US)EPL Db (CA)EPL Db (US)EPL Gb (CA)EPL Gb (US)EPL Gc (CA)EPL Gc (US)
Ex ambient temperature -20??C <= Ta <= +60??C Certified awarding point CSA 263311 Material information LABS containing materials includedRoHs compliant Safety Integrity Level (SIL) SIL 2 Measurement principle Inductive ambient temperature [??C] -20 to 60 Control output PNP Switching element function NO contact Max. output current DC [mA] 100 Operating voltage range DC [V] 10 to 30 Electrical connection 10 pinScrew clamp Lockable conductor nominal cross-section [mm2] 0.25 to 2.5 Cable screwing 1/2 NPT Fastening type on flange according to ISO 5211With mounting brackets installation position arbitrary Product weight [g] 1.700 Housing colour silver Housing material Aluminium die casting Seals material NBR Shaft material High-alloyed stainless steels Screws material High-alloyed stainless steels Mounting bracket material High-alloyed stainless steels Pointer material PC Circlip material High-alloyed stainless steels Washer material High-alloyed stainless steels position indicator yellow / red Settings range angle recording [deg] 0 to 90 Bearing temperature [??C] -20 to 60 Protection category IP67NEMA 4/4X Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 Degree of contamination 3 Permission RCM mark Voltage drop [V] <= 3 V Residual current [mA] 0 to 0.5 Short circuit resistance Cycling Empty run current [mA] <= 15 mA Reverse polarity protection for all electrical connections
