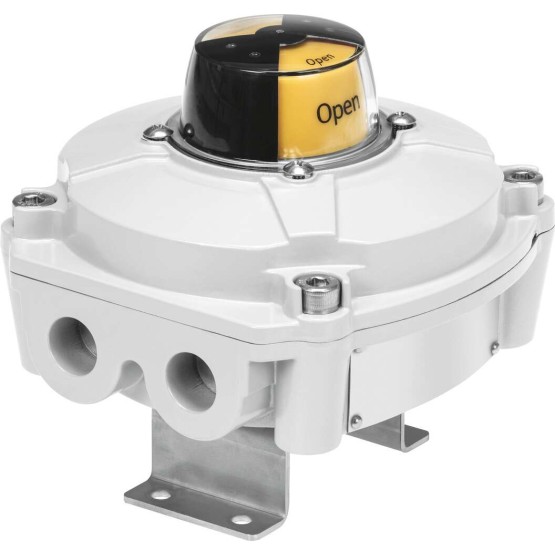

Description
Design Angular
Based on standard EN 60947-5-2ISO 5211VDI/VDE 3845
CE certificate (see declaration of conformity) to EU EMC directive
ATEX gas category II 2G
Ex ignition protection type gas AEx d IIB T5 GbAEx nA IIC T5 GcEx d IIB T5 GbEx nA IIC T5 Gc
ATEX dust category II 2D
Ex ignition protection type dust AEx tb IIIC T108??C DbEx tb IIIC T108??C Db
Ex protection approval outside of the EU EPL Gb (CA)EPL Gb (US)EPL Gc (CA)EPL Gc (US)Class III (US)EPL Db (CA)EPL Db (US)Class I, Div. 1 (CA)Class I, Div. 1 (US)Class I, Div. 2 (CA)Class I, Div. 2 (US)Class II, Div. 1 (CA)Class II, Div. 1 (US)Class III (CA)
Ex ambient temperature -20??C <= Ta <= +60??C
Certified awarding point CSA 263311
Material information LABS containing materials includedRoHs compliant
Safety Integrity Level (SIL) SIL 2
Measurement principle Inductive
ambient temperature [??C] -20 to 60
Control output Contactless 2-wire
Switching element function NO contact
Max. output current DC [mA] 100
Operating voltage range DC [V] 5 to 60
Electrical connection 10 pinScrew clamp
Lockable conductor nominal cross-section [mm2] 0.25 to 2.5
Cable screwing 1/2 NPT
Fastening type on flange according to ISO 5211With mounting brackets
installation position arbitrary
Product weight [g] 1.700
Housing colour silver
Housing material Aluminium die casting
Seals material NBR
Shaft material High-alloyed stainless steels
Screws material High-alloyed stainless steels
Mounting bracket material High-alloyed stainless steels
Pointer material PC
Circlip material High-alloyed stainless steels
Washer material High-alloyed stainless steels
position indicator yellow / red
Settings range angle recording [deg] 0 to 90
Bearing temperature [??C] -20 to 60
Protection category IP67NEMA 4/4X
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Degree of contamination 3
Permission RCM mark
Voltage drop [V] <= 5 V
Residual current [mA] 0 to 1
Reverse polarity protection for all electrical connections
Minimum load current 4 mA
