Description
Build.width [mm] 42,0
Based on standard ISO 5599-2
installation position arbitrary

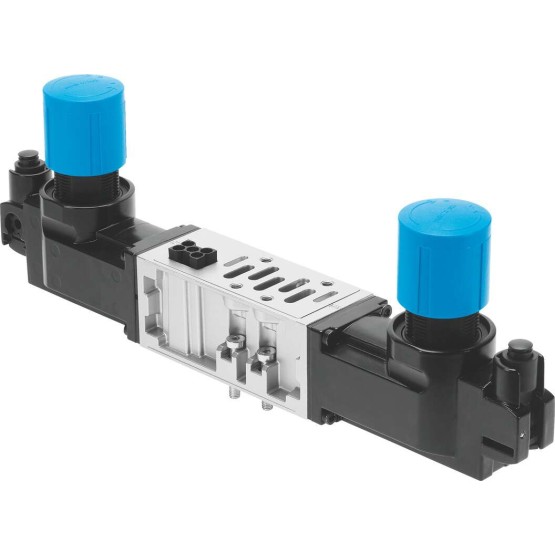

Pneumatic height linking pressure regulator for 2 und 4
Controller function Output pressure constantWith relieving
Selection pressure gauge Possible
Pressure regulation range [bar] 1 to 6
Input pressure 1 [bar] 0.5 to 10
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 0 – No corrosion stressing
Protection category IP65NEMA 4
ambient temperature [??C] -5 to 50
Product weight [g] 920
Fastening type height linking on single connection plateon linking plate
Pressure gauge connection With Holding clamp
Material information RoHs compliant
Control panel material PA
Controller housing material Aluminium die casting
