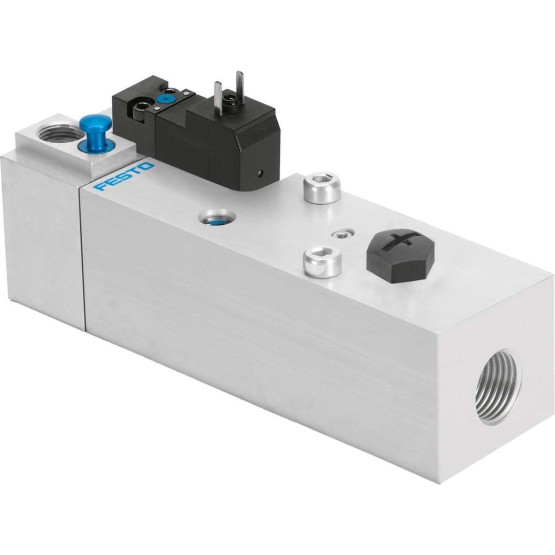

VABF-S6-1-P5A4-G12-4-1

VABF-S6-1-P5A4-G12-4-1

$456.83

Soft-Start Valve is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:VABF-S6-1-P5A4-G12-4-1

FESTO Order Number:558230

SKU: VABF-S6-1-P5A4-G12-4-1 Category: Tag:

Description

Corrosion resistant class KBK 0 – No corrosion stressing
Product weight [g] 590
Material information RoHs compliant
Max. positive test impulse at 0 signal [??s] 2.500
Max. negative test impulse for 1 signal [??s] 1.400
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Based on standard ISO 5599-2
Actuation type Electrical
Sealing principle Soft
installation position arbitrary
Hand assist actuation RatchetingSelf-resetting by electrical control signal
Construction set up Piston pusher
Reset mode Mechanical spring
Control type pilot operated
Control air supply Internal
Flow direction Not reversible
Valve function Pressure build-up function
Information about force dynamic sampling Switching frequency at least 1/month
Operating pressure [bar] 2 to 12
Pre-setting switching pressure [bar] 4
Normal nominal flow venting [l/min] 3.000
Normal nominal flow vent. [l/min] 3.300
Nominal operating voltage DC [V] 24
Coil characteristic value 24 V DC: 2,5 W
Permitted voltage oscillations ?? 10 %
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Protection category IP65NEMA 4
ambient temperature [??C] -5 to 50
Electrical connection Wiring diagram Form C acc. to EN 175301-803PlugSquare shapeacc. to EN 175301-803
Fastening type on connection plate
Support air control connection 12/14 Connection plate Size 1 to ISO 5599-2
Pneumatic connection 1 Connection plate Size 1 to ISO 5599-2
Pneumatic connection 2 Connection plate Size 1 to ISO 5599-2
Pneumatic connection 3 G1/2
Pneumatic connection 4 Connection plate Size 1 to ISO 5599-2
Seals material HNBRNBR
Housing material Aluminium wrought alloy
Screws material Steelzinc plating
