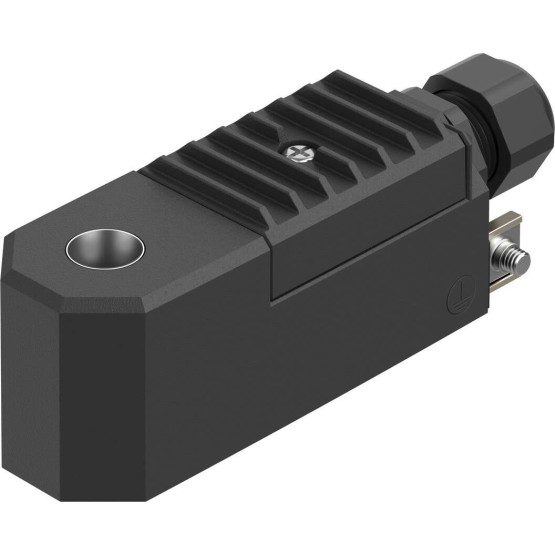

Solenoid Coil is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .


FESTO Order Number:8109401

SKU: VACC-S13-11-K4-1-EX4A Category: Tag:


Actuation type Electrical
installation position arbitrary
Switching position display no
Power-on time 100 %
Insulation material class H
Coil characteristic value 14-32 V DC: 0,22 – 1,1 W
Permitted voltage oscillations -15 % / +10 %
CE certificate (see declaration of conformity) to EU EMC directiveto EU EX protection directive (ATEX)
Ex protection approval outside of the EU EPL Db (IEC-EX)EPL Gb (IEC-EX)
Certified awarding point BVS15 ATEXE030XIECEx BVS 15.0020X
ATEX gas category II 2G
ATEX dust category II 2D
Ex ignition protection type gas Ex ia IIC T6, T5 Gb
Ex ignition protection type dust Ex ia IIIC T80??C,T95??C IP65 Db
Ex ambient temperature T5,T95??C: -30??C <= Ta <= +65??CT6,T80??C: -30??C <= Ta <= +50??C Protection category IP65 Product weight [g] 330 Electrical connection Terminal boxes, Cable feed in thread M20x1,5 Material information LABS containing materials includedRoHs compliant Required power input [A] 0,016 Max. input voltage [V] 32 Max. input current [A] 0,200 Effective capacity Negligibly small Effective inductivity Negligibly small Max. input power 1,2 W
