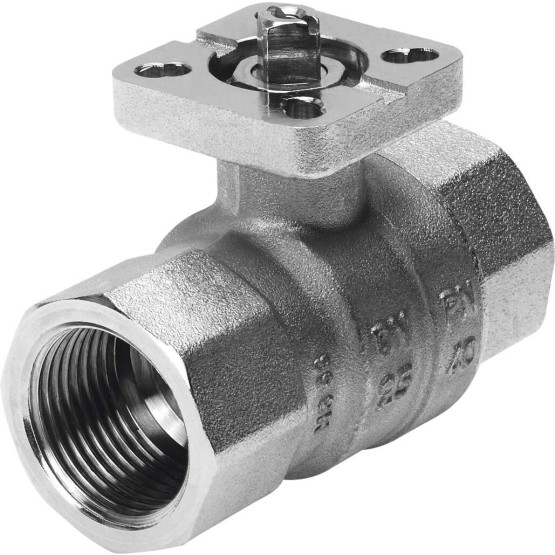

VAPB-2-F-25-F05

VAPB-2-F-25-F05

$118.28

Ball Valve is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:VAPB-2-F-25-F05

FESTO Order Number:534309

SKU: VAPB-2-F-25-F05 Category: Tag:

Description

Construction set up 2-way ball valve
Actuation type Mechanical
Sealing principle Soft
installation position arbitrary
Fastening type pipe installation
Fitting connection Rp2
Switching position display Carriage direction = flow direction
Flange drilling screen F05
Nominal width DN 50
Flow direction Reversible
Nominal pressure fitting 25
Break-out torque at a pressure difference nominal fitting pressure PN [Nm] 29,0
Break-out torque at a pressure difference of 10 bar [Nm] 22,0
Based on standard ISO 5211
medium Compressed air to ISO8573-1:2010 [-:-:-]Inert gasesNeutral liquidsWater
Medium temperature [??C] -20 to 150
Flow Kv [m3/h] 292,0
Material information LABS containing materials includedRoHs compliant
Housing material brassnickel-plated
Material number housing CW617N
Seals material HNBRPTFE
Ball material brasshard chromium plated
Material number ball CW617N
Shaft material Brass
Material number shaft CW614N
Product weight [g] 3.100
Corrosion resistant class KBK 1 – low corrosion stress
CE certificate (see declaration of conformity) to EU pressure vessel directive
