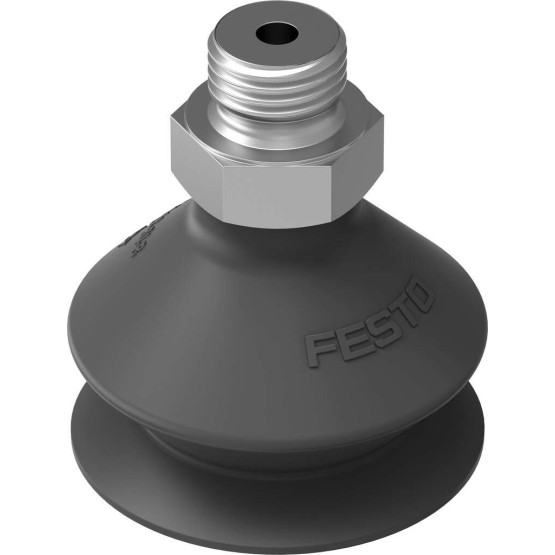

Description
Height balance suction cup [mm] 5,6
Nominal width [mm] 3,0
Suction diameter [mm] 15
Suction volumes [cm3] 0,830
Connection position top
installation position arbitrary
Suction shape Round folding bellows1.5 times
Operating pressure [bar] -0,95
Nominal operating pressure [bar] -0,7
Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistant class KBK 2 – moderate corrosion stress
ambient temperature [??C] -20 to 60
Holding force for nominal operating pressure [N] 8,50
Product weight [g] 11
Fastening type Via vacuum connection
vacuum connection G1/8
colour blue
Shore hardness 60 ?? 5
Stud material Brass
Material information RoHs compliant
Suction cups material PUR
Effective suction diameter [mm] 12,4
