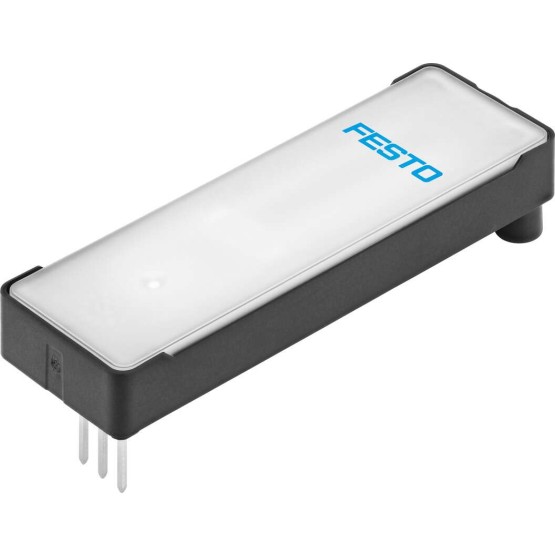

Description
Packing size 1
Information about protection category Depends on connection block
Normal nominal flow [l/min] 19
Normal nominal flow 2-3 [l/min] 20
Flow direction Not reversible
Nominal operating pressure [bar] 1,0
Operating pressure [bar] 0 to 1.1
Valve function 3/3 closed monostable
Nominal width [mm] 1,3
Actuation type Electrical
Pneumatic connection 1 flange
Pneumatic connection 2 flange
Pneumatic connection 3 flange
medium Inerte GaseStickstoffLuftSauerstoff (Sauerstoffapplikationen nach IEC 60601-1 nur auf Anfrage)
Special features oxygen-compatible acc. to DIN EN 1797
Operating medium Druckluft nach ISO 8573-1:2010 [5:3:1]
Information about operating and control medium Oiled operation not possible
Filter porosity [??m] <= 5 ??m
Relative humidity 0 - 70 %nicht kondensierend
Pressure dew point [??C] <= -20 ??C
Max. switching frequency [Hz] 5
Medium temperature [??C] -20 to 60
ambient temperature [??C] -20 to 70
Bearing temperature [??C] -20 to 70
Nominal operating voltage DC [V] 250
Operating voltage range DC [V] 0 to 250
Max. power input [mA] 5
Max. electrical power consumption [W] 0,001
Product weight [g] 8
Seals material EPDM
Housing material PA reinforced
Cover material PA reinforced
Material information RoHs compliant
Pitch dimension [mm] 17,2
Dimensions W x L x H 17.2 mm x 52.1 mm x 7.2 mm
Fastening type on connection plateon connection strip
installation position arbitrary
CE certificate (see declaration of conformity) to EU low voltage directive
