VHER-H-B43C-G12

$261.78

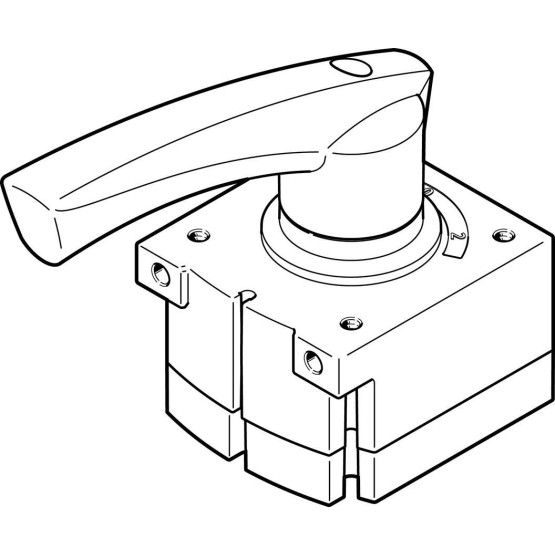

Hand Lever is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:VHER-H-B43C-G12

FESTO Order Number:3192065

SKU: VHER-H-B43C-G12 Category: Tag:

Description

Valve function 4/3 closed
Actuation type Manually
Build.width [mm] 95
Normal nominal flow [l/min] 3.200
Operating pressure [bar] 0 to 10
Information about operating pressure Vacuum mode -0.95 to 0 bar, may only be connected to connection 3For two-pressure mode, the pressure on connection 1 must be higher than on connection 3.
Construction set up Rotary disc
Nominal width [mm] 12
Exhaust function Can be throttled
User information Only actuate by hand
Sealing principle Hard
Control type Direct
Flow direction Not reversible
Freedom from cross-talk yes
Switching position display With Accessories
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 – moderate corrosion stress
Medium temperature [??C] -20 to 80
ambient temperature [??C] -20 to 80
Actuation torque [Nm] 5,0
Product weight [g] 1.010
Fastening type Front panel integrationWith throughway boresSelectively:
Pneumatic connection 1 G1/2
Pneumatic connection 2 G1/2
Pneumatic connection 3 G1/2
Pneumatic connection 4 G1/2
Material information Copper and PTFE-freeRoHs compliant
Seals material NBR
Housing material Aluminium die casting
Lever material Aluminium die casting
