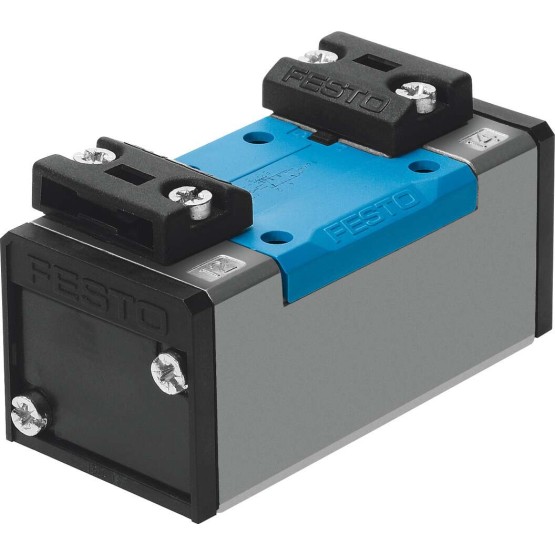

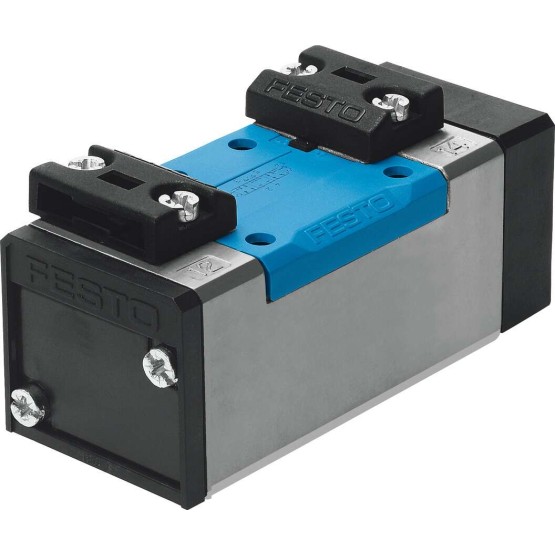

Description
Valve function 5/2 monostable
Actuation type pneumatic
Build.width [mm] 54
Normal nominal flow [l/min] 2.300
Operating pressure [bar] 2 to 16
Construction set up Piston pusher
Reset mode Pneumatic spring
Nominal width [mm] 11,5
Pitch dimension [mm] 56
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Complies to standard ISO 5599-1
Hand assist actuation none
ISO-Code 202
Control type Direct
Flow direction Not reversible
??berdeckung positive ??berdeckung
Shifting time off [ms] 39
Shifting time on [ms] 23
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Medium temperature [??C] -10 to 60
Sound level [dB(A)] 85
ambient temperature [??C] -10 to 60
Product weight [g] 550
Fastening type on connection plateWith Throughway bore and screw
Pneumatic connection 1 Connection plate Size 2 to ISO 5599-1
Pneumatic connection 2 Connection plate Size 2 to ISO 5599-1
Pneumatic connection 3 Connection plate Size 2 to ISO 5599-1
Pneumatic connection 4 Connection plate Size 2 to ISO 5599-1
Pneumatic connection 5 Connection plate Size 2 to ISO 5599-1
Material information RoHs compliant
Seals material HNBRNBR
Housing material Aluminium die casting
Control pressure [bar] 2 to 16
control medium Compressed air to ISO 8573-1:2010 [7:4:4]
Control air 14 connection Connection plate Size 2 to ISO 5599-1
Oscillation strength Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
CE certificate (see declaration of conformity) to EU EX protection directive (ATEX)
ATEX gas category II 2G
ATEX dust category II 2D
Ex ignition protection type gas Ex h IIC T4 Gb
Ex ignition protection type dust Ex h IIIC T130??C Db
Ex ambient temperature -10??C <= Ta <= +60??C
