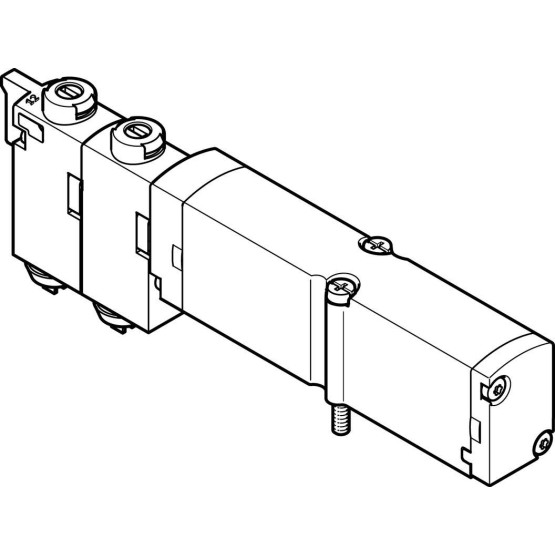

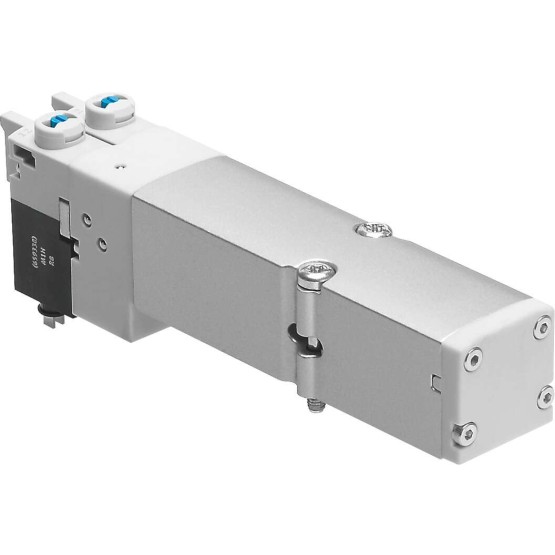

Description
Valve function 5/3 vented
Actuation type Electrical
Valve size [mm] 14
Normal nominal flow [l/min] 420 bis 480
Operating pressure [bar] -0.9 to 10
Construction set up Piston pusher
Reset mode Mechanical spring
Permission c CSA us (OL)c UL us – Recognized (OL)
Protection category IP65In mounted conditionacc. to IEC 60529
Sealing principle Soft
installation position arbitrary
Hand assist actuation Ratchetingtentative
Control type pilot operated
Flow direction Reversible
??berdeckung positive ??berdeckung
Signal condition display yes
Control pressure [bar] 3 to 8
Vacuum capable yes
Shifting time off [ms] 40
Shifting time on [ms] 12
Max. positive test impulse at 0 signal [??s] 400
Max. negative test impulse for 1 signal [??s] 200
Permitted voltage oscillations ?I 25 %
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 1 – low corrosion stress
Bearing temperature [??C] -20 to 40
Medium temperature [??C] -5 to 50
Relative humidity max. 90 % at 40 ??C
ambient temperature [??C] -5 to 50
Max. tightening torque Valve fastening [Nm] 0,65
Product weight [g] 77
Fastening type With throughway bores
Material information RoHs compliant
Seals material NBR
Housing material Aluminium die casting
Shifting time um [ms] 18
Normal nominal flow with QS-8 [l/min] 420 bis 480
Hinweis zum Normalnenndurchfluss MPA-S: 420 l/minMPA-L: 480 l/min
CE certificate (see declaration of conformity) to EU EMC directive
