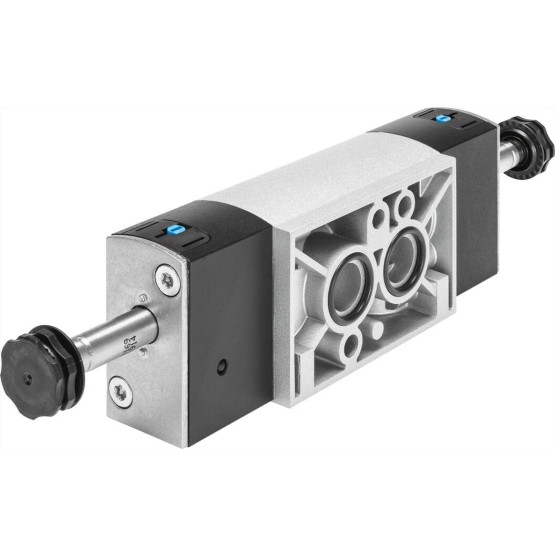

Description
Valve function 5/2 bistable
Actuation type Electrical
Build.width [mm] 32
Normal nominal flow [l/min] 1.350
Operating pressure [bar] 1.5 to 8
Construction set up Piston pusher
Certified awarding point DNVGL-TAA000011J
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Complies to standard VDI/VDE 3845 (NAMUR)
Hand assist actuation Ratchetingtentative
Control type pilot operated
Control air supply Internal
Flow direction Not reversible
??berdeckung positive ??berdeckung
Signal condition display With Accessories
b-value 0.4
C-value [l/sbar] 5,60
Power-on time 100 %
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 – moderate corrosion stress
Medium temperature [??C] -20 to 60
ambient temperature [??C] -20 to 60
Product weight [g] 685
Fastening type With throughway bores
Breathing opening connection Not recorded
Pneumatic connection 1 G1/4
Pneumatic connection 2 NAMUR wiring diagram
Pneumatic connection 3 G1/4
Pneumatic connection 4 NAMUR wiring diagram
Pneumatic connection 5 G1/4
Material information RoHs compliant
Seals material NBR
Housing material Aluminium wrought alloy
Screws material High-alloyed stainless steels
Shifting time um [ms] 20
Ex protection approval outside of the EU EPL Db (IEC-EX)EPL Ga (IEC-EX)
ATEX gas category II 2G
ATEX dust category II 2D
Ex ignition protection type gas Ex ia IIC T6 Ga
Ex ignition protection type dust Ex t IIIC T80??C Db
Ex ambient temperature -40??C <= Ta <= +50??C
Protection category IP65With Socketacc. to IEC 60529
Max. input voltage [V] 28
Max. input current [A] 0,115
Permitted voltage oscillations ?I 10 %
Electrical connection Wiring diagram Form A acc. to EN 175301-803acc. to EN 175301-803
